71904 CE/HCP4A SKF

Brand - SKF
Item Number - 71904 CE/HCP4A SKF
Category - Angular Contact Ball Bearing Single Row
Inner Diameter (d) mm - 20
Outer Diameter (D) mm - 37
Width (B) mm - 9
Basic Dynamic Load Rating (C) kN - 4.88
Basic Static Load Rating (C0) kN - 2.4
Fatigue Load Limit (Pu) kN - 0.102
Attainable Grease Lubrication (r/min) - 68000
Speeds Oil-Air Lubrication (r/min) - 106000
Weight (kg) - 0.032
Large Side Face Shoulder Diameter of Inner Ring (d1) mm - 25.7
Small Side Face Shoulder Diameter of Inner Ring (d2) mm - 24.4
Large Side Face Shoulder Diameter of Outer Ring (D1) mm - 31.5
Small Side Face Shoulder Diameter of Outer Ring (D2) mm - 33.5
Minimum Chamfer Dimension (r1, r2) mm - 0.3
Minimum Chamfer Dimension (r3, r4) mm - 0.15
Minimum Diameter of Shaft Abutment (da) mm - 22
Minimum Diameter of Shaft Abutment (db) mm - 22
Maximum Diameter of Housing Abutment (Da) mm - 35
Maximum Diameter of Housing Abutment (Db) mm - 36.2
Maximum Radius of Fillet (ra) mm - 0.3
Maximum Radius of Fillet (rb) mm - 0.15
Position of Oil Nozzle (dn) mm - 26.7
Reference Grease Quantity (Gref) cm3 - 0.5
Calculation Factor for Equivalent Loads (f0) - 7.8

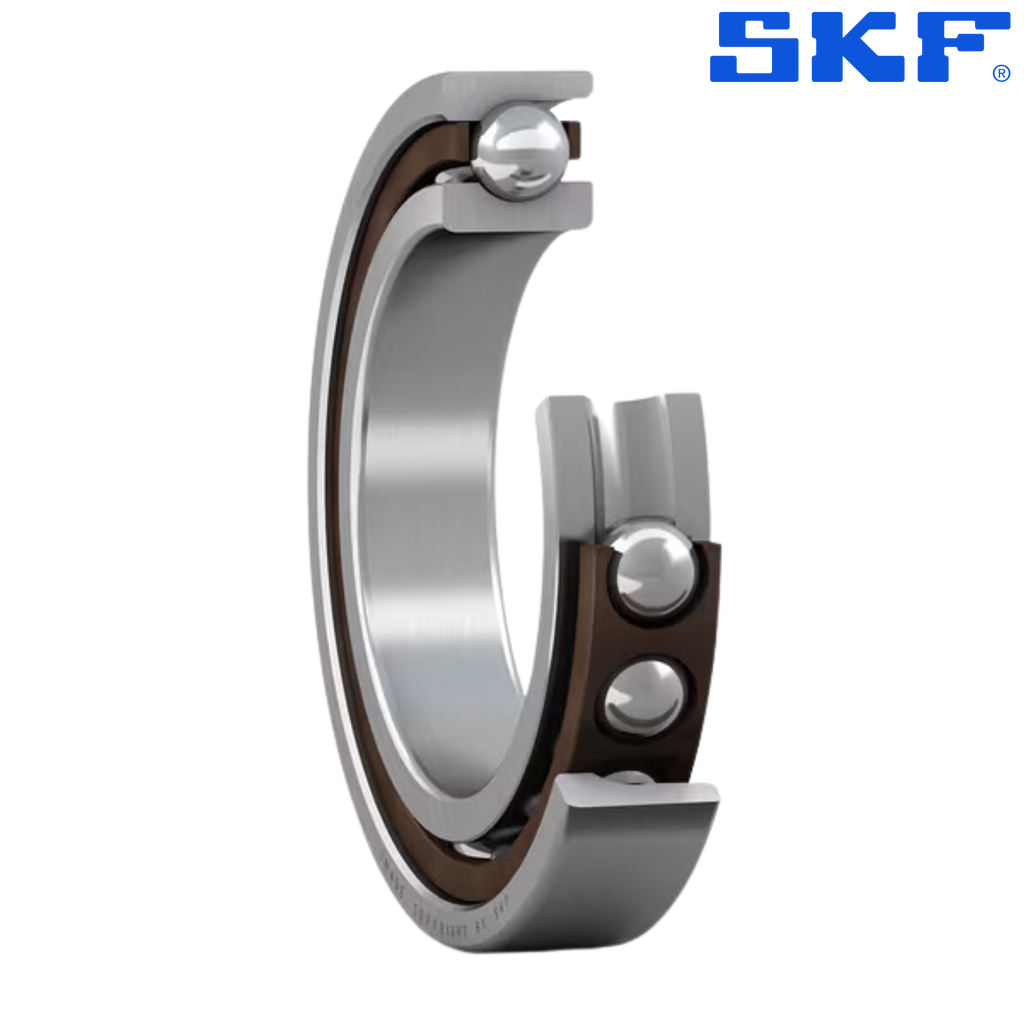

** Image is for representation purposes only
