719/1060-MP FAG

Brand - FAG
Item Number - 719/1060-MP FAG
Category - Angular Contact Ball Bearing Single Row
Weight (Kg) - 653
Inner Diameter (d) mm - 1060
Outer Diameter (D) mm - 1400
Inner Width (B) mm - 150
Minimum Chamfer Dimension (r) mm - 7.5
Minimum Chamfer Dimension (r1) mm - 4
Shoulder Diameter Outer Ring (D1) mm - 1273
Distance Between The Apexes Of The Pressure Cones (a) mm - 430
Contact Angle (α°) - 30

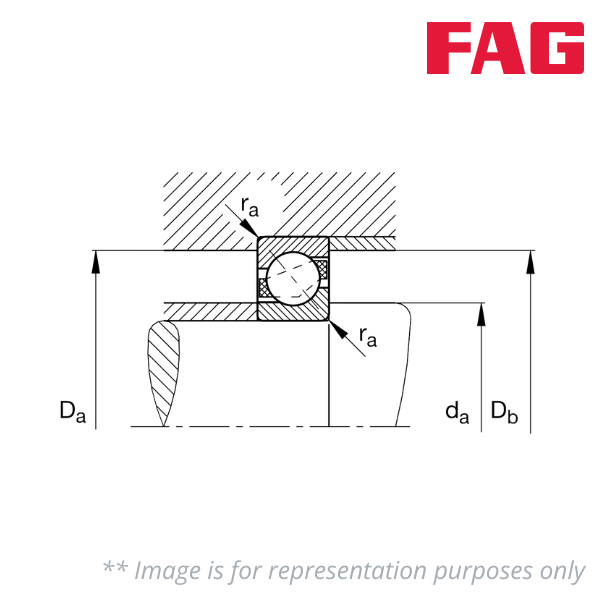

Minimum Diameter Of Shaft Shoulder (da) mm - 1088
Maximum Diameter Of Housing Shoulder (Da) mm - 1372
Maximum Diameter Of Housing Shoulder (Db) mm - 1385.4
Maximum Fillet Radius Of Shaft (ra) mm - 6
Maximum Fillet Radius Of Housing (ra1) mm - 3
Basic Dynamic Load Rating (Cr) kN - 1460
Basic Static Load Rating (C0r) kN - 4750
Calculation Factor (e) - 0.8
Calculation Factor (X) - 0.39
Calculation Factor (Y) - 0.76
Calculation Factor (Y0) - 0.33
Fatigue Limit Load Current (Cur) kN - 76
Limiting Speed (nG) rpm - 630
