Description
Brand - FAG
Item Number - 71816-B-TVH FAG
Category - Angular Contact Ball Bearing Single Row
Bore diameter (d) mm - 80
Outside Diameter (D) mm - 100
Width (B) mm - 10
Basic Dynamic Load Rating, Radial (Cr) N - 16500
Basic Static Load Rating, Radial (C0r) N - 19100
Fatigue Load Limit, Radial (Cur) N - 1240
Limiting Speed (nG) min–1 - 8000
Reference Speed (nϑr) min–1 - 3900
Weight (m) kg - 0.155
Minimum Chamfer Dimension (r min) mm - 0.6
Minimum Chamfer Dimension (r1 min) mm - 0.3
Shoulder Diameter on Outer Ring Wide Side Face (D1) mm - 92
Shoulder Diameter on Inner Ring Wide Side Face (d1) mm - 88
Distance Between the Apexes of the Pressure Cones (a) mm - 42.8
Nominal Contact Angle (α)° - 40

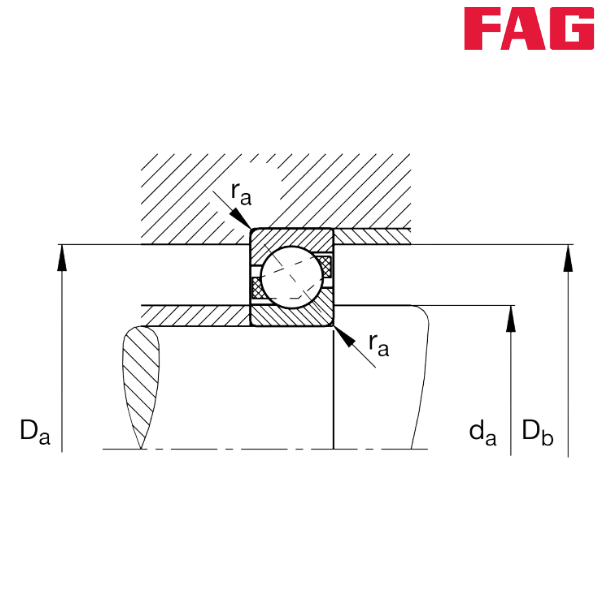

Minimum Diameter of Shaft Shoulder (da) mm - 85.2
Maximum Diameter of Housing Shoulder (Da) mm - 96.8
Maximum Diameter of Housing Shoulder (Db) mm - 98
Maximum Fillet Radius of Shaft (ra) mm - 0.6
Maximum Fillet Radius of Housing (ra1) mm - 0.3
Descriptions of Suffixes :
--------------------------------------------------------------------------
B - Modified Internal Construction, Nominal Contact Angle α = 40°
TVH - Solid Cage Made from Glass Fibre Reinforced Polyamide PA66
** Images are for representation purposes only
