Description
Brand - SKF

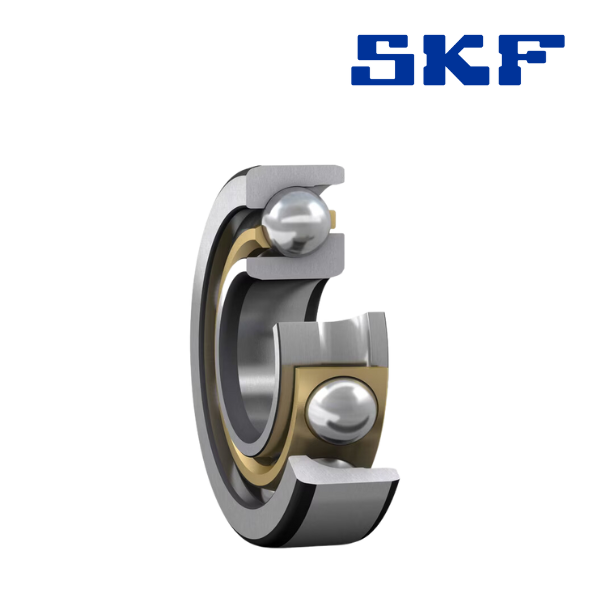

Item Number - 71814CDGB/P4 SKF
Also known as - B71814-C-TPA-P4-UM
Inner (d) MM - 70
Outer (D) MM - 90
Width (B) MM - 10
Weight (kg) - 0.134
Seal - No Seal
Cage Type - TB - Hard Fiber Cage
Precision - P4 Precision (Higher than P5)
Contact Angle - 15 degrees
Pairing - G - Universal Pairing
Axial Internal Clearance / Preload - GB - Medium Preload
Lubrication - Standard Lubrication
