71814-B-TVH FAG

FAG

Download Data Sheet

Country Of Origin: EU

Variant

Share this product

Brand - FAG
Item Number - 71814-B-TVH FAG
Category - Angular Contact Ball Bearing Single Row
Bore diameter (d) mm - 70
Outside Diameter (D) mm - 90
Width (B) mm - 10
Basic Dynamic Load Rating, Radial (Cr) N - 15800
Basic Static Load Rating, Radial (C0r) N - 17200
Fatigue Load Limit, Radial (Cur) N - 1100
Limiting Speed (nG) min–1 - 9000
Reference Speed (nϑr) min–1 - 4500
Weight (m) kg - 0.14
Minimum Chamfer Dimension (r min) mm - 0.6
Minimum Chamfer Dimension (r1 min) mm - 0.3
Shoulder Diameter on Outer Ring Wide Side Face (D1) mm - 82
Shoulder Diameter on Inner Ring Wide Side Face (d1) mm - 78
Distance Between the Apexes of the Pressure Cones (a) mm - 38.5
Nominal Contact Angle (α)° - 40

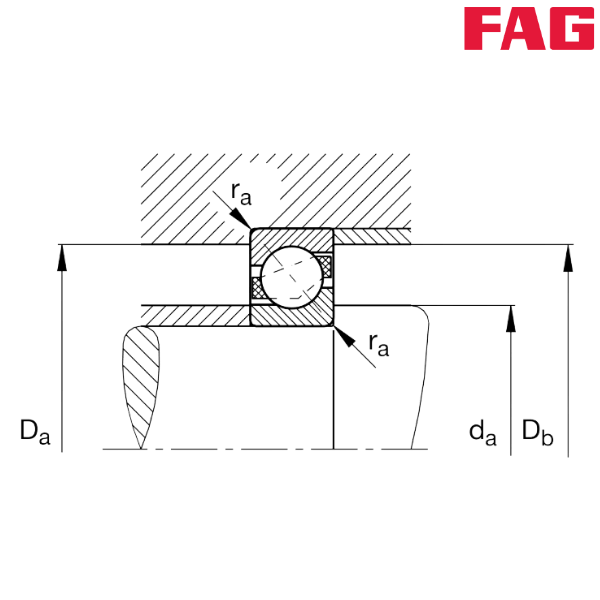

Minimum Diameter of Shaft Shoulder (da) mm - 73.2
Maximum Diameter of Housing Shoulder (Da) mm - 86.8
Maximum Diameter of Housing Shoulder (Db) mm - 88
Maximum Fillet Radius of Shaft (ra) mm - 0.6
Maximum Fillet Radius of Housing (ra1) mm - 0.3

Descriptions of Suffixes :
--------------------------------------------------------------------------
B - Modified Internal Construction, Nominal Contact Angle α = 40°
TVH - Solid Cage Made from Glass Fibre Reinforced Polyamide PA66

** Images are for representation purposes only
