718/560-MP FAG

Brand - FAG
Item Number - 718/560-MP FAG
Category - Angular Contact Ball Bearing Single Row
Weight (Kg) - 30.1
Inner Diameter (d) mm - 560
Outer Diameter (D) mm - 680
Inner Width (B) mm - 56
Minimum Chamfer Dimension (r) mm - 3
Minimum Chamfer Dimension (r1) mm - 1.1
Shoulder Diameter Outer Ring (D1) mm - 636.8
Shoulder Diameter Inner Ring (d1) mm - 606
Distance Between The Apexes Of The Pressure Cones (a) mm - 207
Contact Angle (α°) - 30

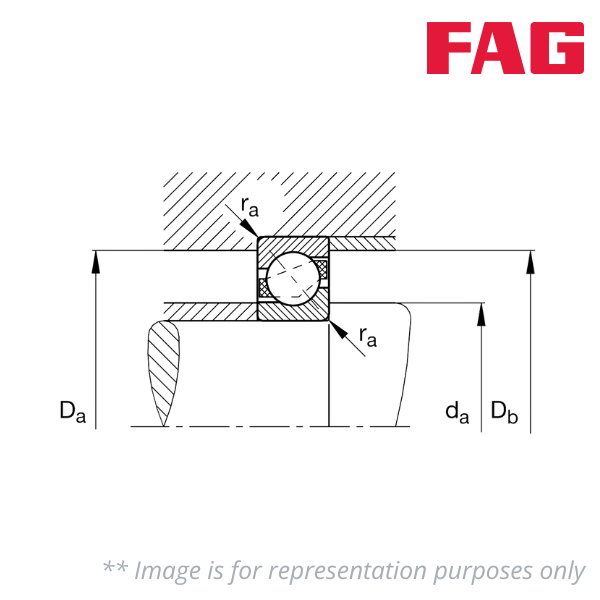

Minimum Diameter Of Shaft Shoulder (da) mm - 572.4
Maximum Diameter Of Housing Shoulder (Da) mm - 667.6
Maximum Diameter Of Housing Shoulder (Db) mm - 674
Maximum Fillet Radius Of Shaft (ra) mm - 2.5
Maximum Fillet Radius Of Housing (ra1) mm - 1
Basic Dynamic Load Rating (Cr) kN - 405
Basic Static Load Rating (C0r) kN - 865
Calculation Factor (e) - 0.8
Calculation Factor (X) - 0.39
Calculation Factor (Y) - 0.76
Calculation Factor (Y0) - 0.33
Fatigue Limit Load Current (Cur) kN - 20.1
Limiting Speed (nG) rpm - 1400
