71453/71750 (X2S-71453) TIMKEN

Brand - TIMKEN
Item Number - 71453/71750 (X2S-71453) TIMKEN
Also Known As - 71453 - 71750 (X2S-71453)
Category - Double Row Tapered Roller Bearing (2TS-IM Type)

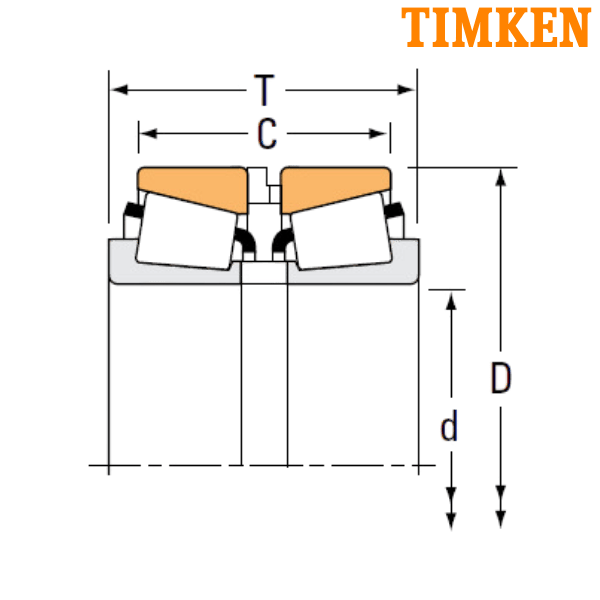

Bore Diameter (d) mm - 115.087
Bore Diameter (d) inch - 4.531
Outer Diameter (D) mm - 190.5
Outer Diameter (D) inch - 7.5
Width (T) mm - 106.35
Width (T) inch - 4.187
Width (C) mm - 80.95
Width (C) inch - 3.187
Dynamic Radial Rating (C1) N - 633000
Dynamic Radial Rating (C1) lbf - 142000
Factor (e) - 0.42
Factor (Y1) - 1.62
Factor (Y2) - 2.42
Dynamic Radial Rating (90 million revolutions) (C90) N - 94300
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 21200
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 67100
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 15100
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 164000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 36900
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.4

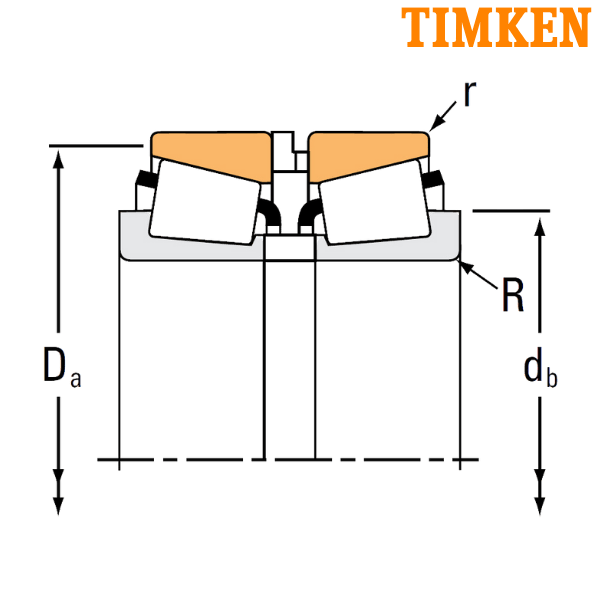

Maximum Shaft Fillet Radius (R) mm - 3.5
Maximum Shaft Fillet Radius (R) inch - 0.14
Backing Shoulder Diameter (db) mm - 133
Backing Shoulder Diameter (db) inch - 5.24
Maximum Housing Fillet Radius (r) mm - 0.8
Maximum Housing Fillet Radius (r) inch - 0.03
Cup Frontface Backing Diameter (Da) mm - 181
Cup Frontface Backing Diameter (Da) inch - 7.13
Weight (kg) - 10.3
Weight (lbs) - 22.72
Inner Spacer - X2S-71453
Inner Part Number - 71453
Outer Part Number - 71750
2TS-IM - Two Single-Row Bearings with an Inner-Ring and Outer-Ring Spacer, Indirect Mounting

** Images are for representation purposes only
