70976-MP FAG

Brand - FAG
Item Number - 70976-MP FAG
Category - Angular Contact Ball Bearing Single Row
Weight (Kg) - 29
Inner Diameter (d) mm - 380
Outer Diameter (D) mm - 520
Inner Width (B) mm - 44
Minimum Chamfer Dimension (r) mm - 3
Minimum Chamfer Dimension (r1) mm - 1.1
Shoulder Diameter Outer Ring (D1) mm - 464.5
Shoulder Diameter Inner Ring (d1) mm - 435.6
Distance Between The Apexes Of The Pressure Cones (a) mm - 152
Contact Angle (α°) - 30

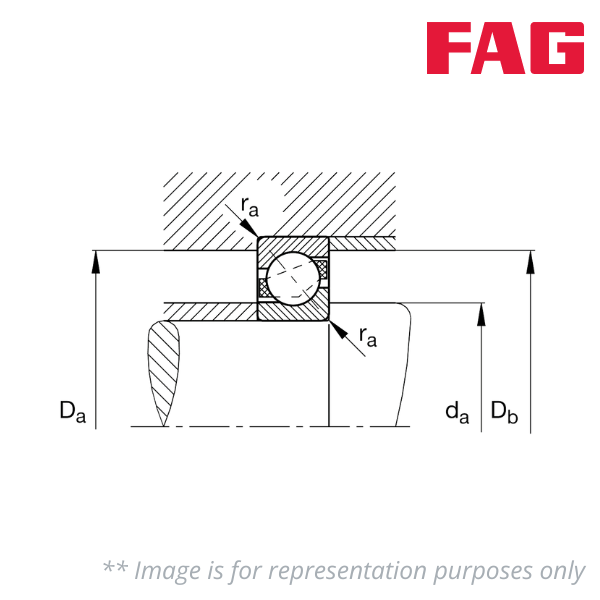

Minimum Diameter Of Shaft Shoulder (da) mm - 392.4
Maximum Diameter Of Housing Shoulder (Da) mm - 507.6
Maximum Diameter Of Housing Shoulder (Db) mm - 514
Maximum Fillet Radius Of Shaft (ra) mm - 2.5
Maximum Fillet Radius Of Housing (ra1) mm - 1
Basic Dynamic Load Rating (Cr) kN - 320
Basic Static Load Rating (C0r) kN - 560
Calculation Factor (e) - 0.8
Calculation Factor (X) - 0.39
Calculation Factor (Y) - 0.76
Calculation Factor (Y0) - 0.33
Fatigue Limit Load Current (Cur) kN - 15
Limiting Speed (nG) rpm - 1900
