709/950-MP FAG

Brand - FAG
Item Number - 709/950-MP FAG
Category - Angular Contact Ball Bearing Single Row
Weight (Kg) - 338
Inner Diameter (d) mm - 950
Outer Diameter (D) mm - 1250
Inner Width (B) mm - 95
Minimum Chamfer Dimension (r) mm - 6
Minimum Chamfer Dimension (r1) mm - 3
Shoulder Diameter Outer Ring (D1) mm - 1132
Distance Between The Apexes Of The Pressure Cones (a) mm - 365
Contact Angle (α°) - 30

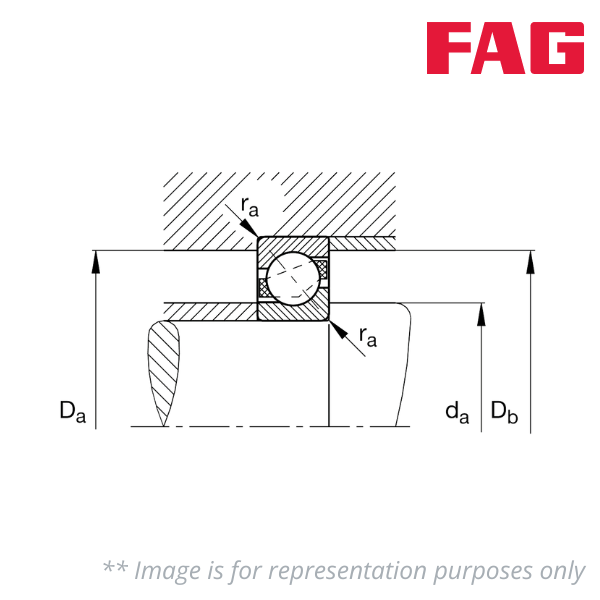

Minimum Diameter Of Shaft Shoulder (da) mm - 973
Maximum Diameter Of Housing Shoulder (Da) mm - 1227
Maximum Diameter Of Housing Shoulder (Db) mm - 1237.6
Maximum Fillet Radius Of Shaft (ra) mm - 5
Maximum Fillet Radius Of Housing (ra1) mm - 2.5
Basic Dynamic Load Rating (Cr) kN - 1060
Basic Static Load Rating (C0r) kN - 3250
Calculation Factor (e) - 0.8
Calculation Factor (X) - 0.39
Calculation Factor (Y) - 0.76
Calculation Factor (Y0) - 0.33
Fatigue Limit Load Current (Cur) kN - 57
Limiting Speed (nG) rpm - 700
