709/560-MP FAG

Brand - FAG
Item Number - 709/560-MP FAG
Category - Angular Contact Ball Bearing Single Row
Weight (Kg) - 78.1
Inner Diameter (d) mm - 560
Outer Diameter (D) mm - 750
Inner Width (B) mm - 60
Minimum Chamfer Dimension (r) mm - 5
Minimum Chamfer Dimension (r1) mm - 2
Shoulder Diameter Outer Ring (D1) mm - 675
Shoulder Diameter Inner Ring (d1) mm - 635
Distance Between The Apexes Of The Pressure Cones (a) mm - 219
Contact Angle (α°) - 30

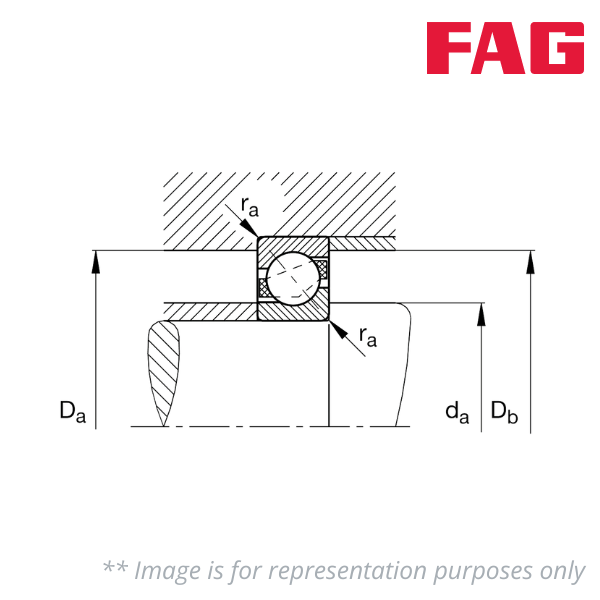

Minimum Diameter Of Shaft Shoulder (da) mm - 578
Maximum Diameter Of Housing Shoulder (Da) mm - 732
Maximum Diameter Of Housing Shoulder (Db) mm - 741.2
Maximum Fillet Radius Of Shaft (ra) mm - 4
Maximum Fillet Radius Of Housing (ra1) mm - 2
Basic Dynamic Load Rating (Cr) kN - 540
Basic Static Load Rating (C0r) kN - 1200
Calculation Factor (e) - 0.8
Calculation Factor (X) - 0.39
Calculation Factor (Y) - 0.76
Calculation Factor (Y0) - 0.33
Fatigue Limit Load Current (Cur) kN - 26.5
Limiting Speed (nG) rpm - 1300
