708/900-MPB FAG

Brand - FAG
Item Number - 708/900-MPB FAG
Category - Angular Contact Ball Bearing Single Row
Weight (Kg) - 123
Inner Diameter (d) mm - 900
Outer Diameter (D) mm - 1090
Inner Width (B) mm - 60
Minimum Chamfer Dimension (r) mm - 5
Minimum Chamfer Dimension (r1) mm - 2
Shoulder Diameter Outer Ring (D1) mm - 1013
Distance Between The Apexes Of The Pressure Cones (a) mm - 317
Contact Angle (α°) - 30

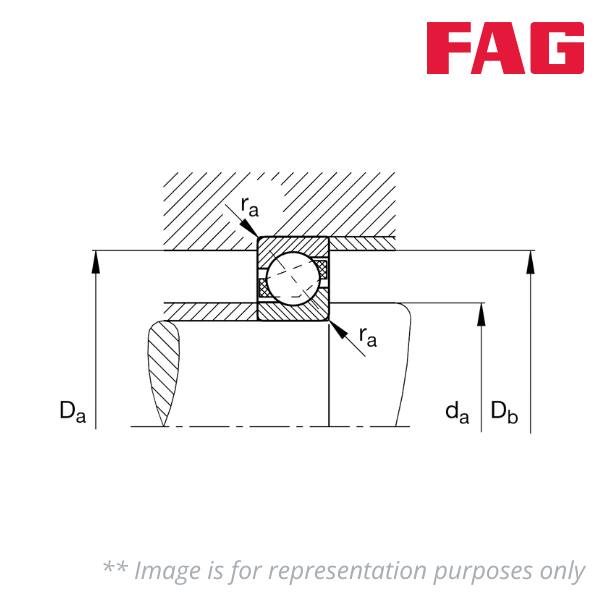

Minimum Diameter Of Shaft Shoulder (da) mm - 918
Maximum Diameter Of Housing Shoulder (Da) mm - 1072
Maximum Diameter Of Housing Shoulder (Db) mm - 1081.2
Maximum Fillet Radius Of Shaft (ra) mm - 4
Maximum Fillet Radius Of Housing (ra1) mm - 2
Basic Dynamic Load Rating (Cr) kN - 550
Basic Static Load Rating (C0r) kN - 1500
Calculation Factor (e) - 0.8
Calculation Factor (X) - 0.39
Calculation Factor (Y) - 0.76
Calculation Factor (Y0) - 0.33
Fatigue Limit Load Current (Cur) kN - 27
Limiting Speed (nG) rpm - 800
