708/600-MP FAG

Brand - FAG
Item Number - 708/600-MP FAG
Category - Angular Contact Ball Bearing Single Row
Weight (Kg) - 37.7
Inner Diameter (d) mm - 600
Outer Diameter (D) mm - 730
Inner Width (B) mm - 42
Minimum Chamfer Dimension (r) mm - 3
Minimum Chamfer Dimension (r1) mm - 1.1
Shoulder Diameter Outer Ring (D1) mm - 676.7
Shoulder Diameter Inner Ring (d1) mm - 655.3
Distance Between The Apexes Of The Pressure Cones (a) mm - 213
Contact Angle (α°) - 30

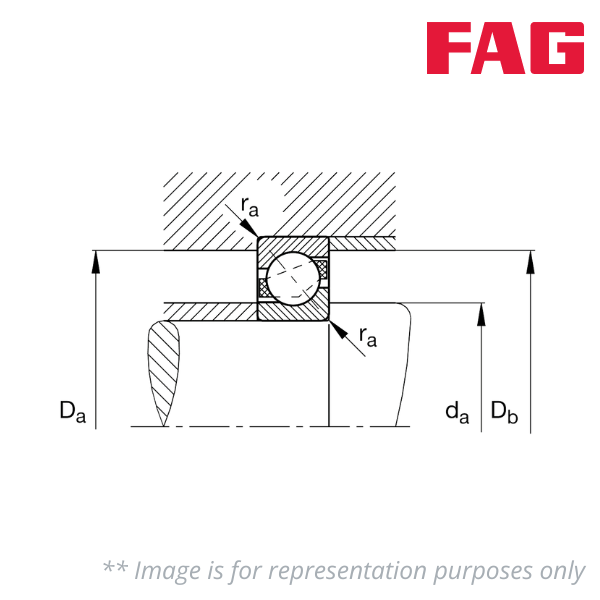

Minimum Diameter Of Shaft Shoulder (da) mm - 612.4
Maximum Diameter Of Housing Shoulder (Da) mm - 717.6
Maximum Diameter Of Housing Shoulder (Db) mm - 724
Maximum Fillet Radius Of Shaft (ra) mm - 2.5
Maximum Fillet Radius Of Housing (ra1) mm - 1
Basic Dynamic Load Rating (Cr) kN - 335
Basic Static Load Rating (C0r) kN - 735
Calculation Factor (e) - 0.8
Calculation Factor (X) - 0.39
Calculation Factor (Y) - 0.76
Calculation Factor (Y0) - 0.33
Fatigue Limit Load Current (Cur) kN - 16.2
Limiting Speed (nG) rpm - 1300
