Description
Brand - SKF
Item Number - 7016 CB/P4A SKF
Category - Angular Contact Ball Bearing Single Row

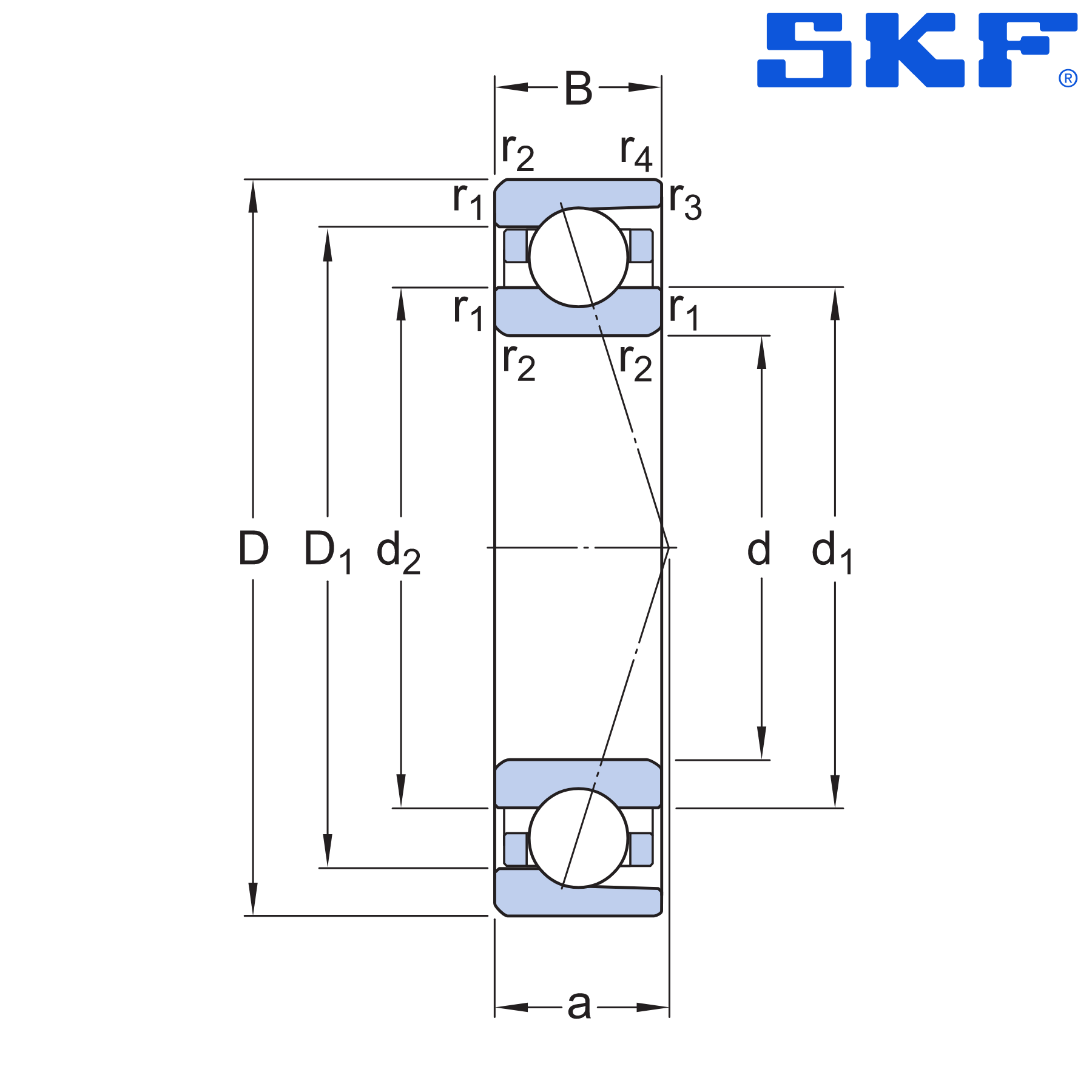

Inner Diameter (d) mm - 80
Outer Diameter (D) mm - 125
Width (B) mm - 22
Basic Dynamic Load Rating (C) kN - 26.5
Basic Static Load Rating (C0) kN - 22.8
Fatigue Load Limit (Pu) kN - 0.95
Attainable Grease Lubrication (r/min) - 14000
Speeds Oil-Air Lubrication (r/min) - 20000
Weight (kg) - 0.92
Large Side Face Shoulder Diameter of Inner Ring (d1) mm - 96.7
Small Side Face Shoulder Diameter of Inner Ring (d2) mm - 94.3
Large Side Face Shoulder Diameter of Outer Ring (D1) mm - 111.4
Small Side Face Shoulder Diameter of Outer Ring (D2) mm - 111.4
Minimum Chamfer Dimension (r1, r2) mm - 1.1
Minimum Chamfer Dimension (r3, r4) mm - 0.6
Minimum Diameter of Shaft Abutment (da) mm - 86
Minimum Diameter of Shaft Abutment (db) mm - 86
Maximum Diameter of Housing Abutment (Da) mm - 119
Maximum Diameter of Housing Abutment (Db) mm - 121.8
Maximum Radius of Fillet (ra) mm - 1
Maximum Radius of Fillet (rb) mm - 0.6
Position of Oil Nozzle (dn) mm - 98
Reference Grease Quantity (Gref) cm3 - 10
Calculation Factor for Equivalent Loads (f0) - 9.6

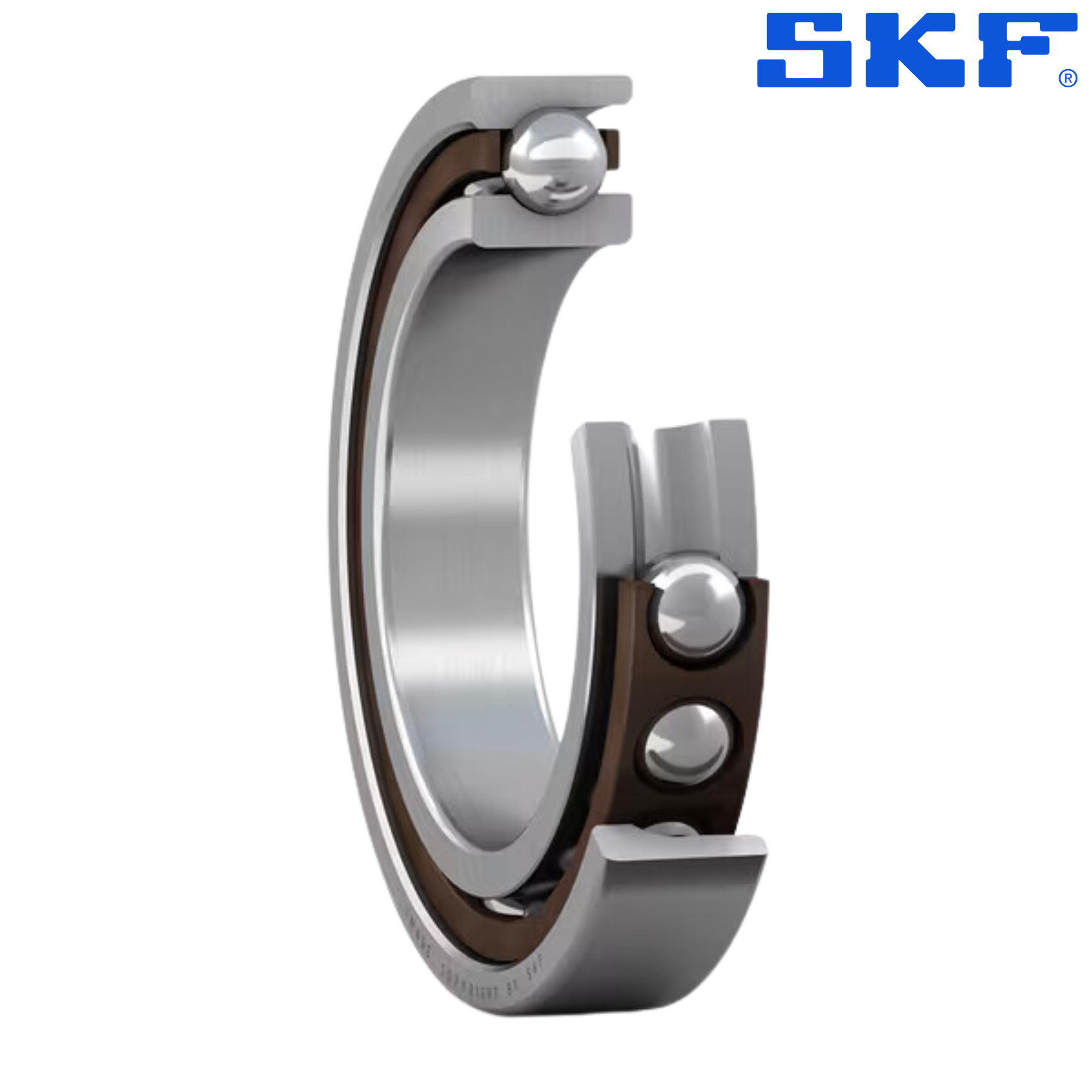

** Image is for representation purposes only
