Description

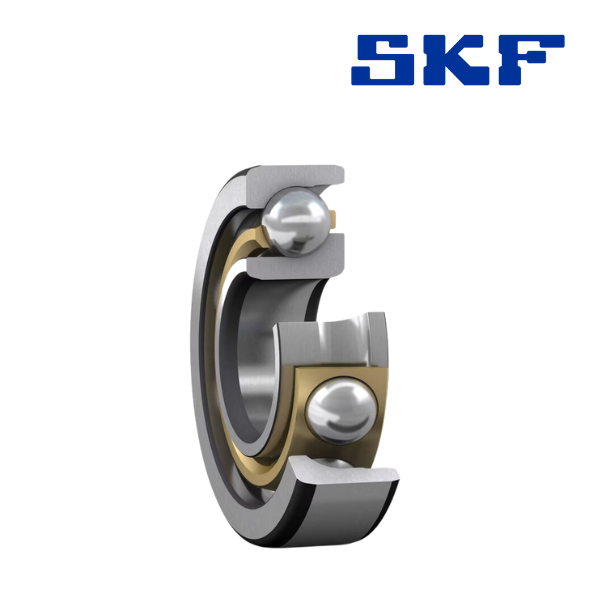

Brand - SKF
Item Number - 7009CD/P4A SKF
Also known as - EX45 7CE1
Inner (d) MM - 45
Outer (D) MM - 75
Width (B) MM - 16
Inner (d) Inch - 1.7717
Outer (D) Inch - 2.9528
Width (B) Inch - 0.6299
Weight (kg) - 0.23
Seal - No Seal
Cage Type - TB - Hard Fiber Cage
Precision - P4 Precision (Higher than P5)
Contact Angle - 15 degrees
Pairing - No pairing
Axial Internal Clearance / Preload - No Preload
Lubrication - Standard Lubrication
