Description
Brand - SKF
Item Number - 7009 CE/HCP4A SKF
Category - Angular Contact Ball Bearing Single Row

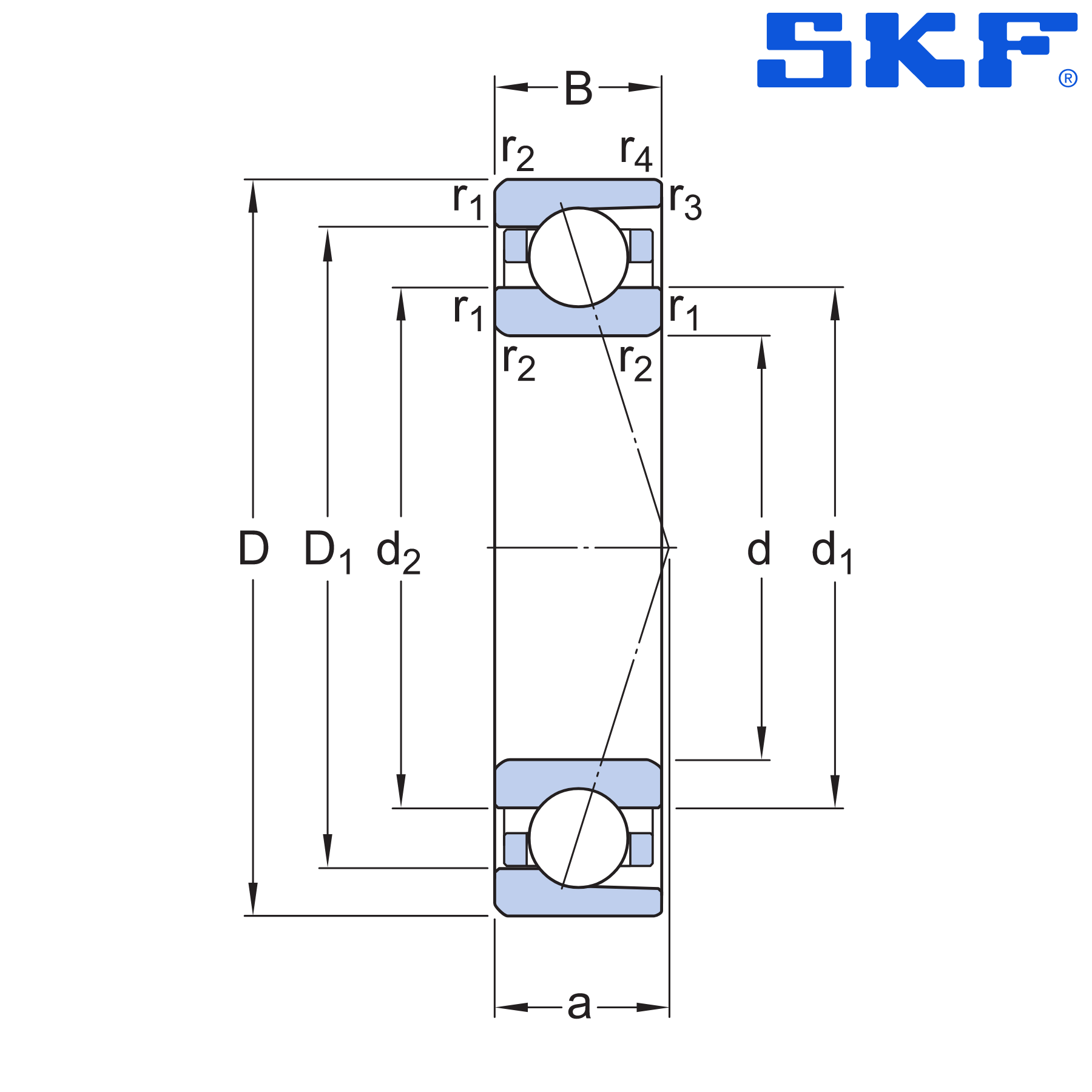

Inner Diameter (d) mm - 45
Outer Diameter (D) mm - 75
Width (B) mm - 16
Basic Dynamic Load Rating (C) kN - 13
Basic Static Load Rating (C0) kN - 8.5
Fatigue Load Limit (Pu) kN - 0.36
Attainable Grease Lubrication (r/min) - 32000
Speeds Oil-Air Lubrication (r/min) - 50000
Weight (kg) - 0.22
Large Side Face Shoulder Diameter of Inner Ring (d1) mm - 55.7
Small Side Face Shoulder Diameter of Inner Ring (d2) mm - 53.6
Large Side Face Shoulder Diameter of Outer Ring (D1) mm - 66.9
Small Side Face Shoulder Diameter of Outer Ring (D2) mm - 66.9
Minimum Chamfer Dimension (r1, r2) mm - 1
Minimum Chamfer Dimension (r3, r4) mm - 0.6
Minimum Diameter of Shaft Abutment (da) mm - 49.6
Minimum Diameter of Shaft Abutment (db) mm - 49.6
Maximum Diameter of Housing Abutment (Da) mm - 70.4
Maximum Diameter of Housing Abutment (Db) mm - 70.8
Maximum Radius of Fillet (ra) mm - 1
Maximum Radius of Fillet (rb) mm - 0.6
Position of Oil Nozzle (dn) mm - 57.6
Reference Grease Quantity (Gref) cm3 - 3.4
Calculation Factor for Equivalent Loads (f0) - 8.2

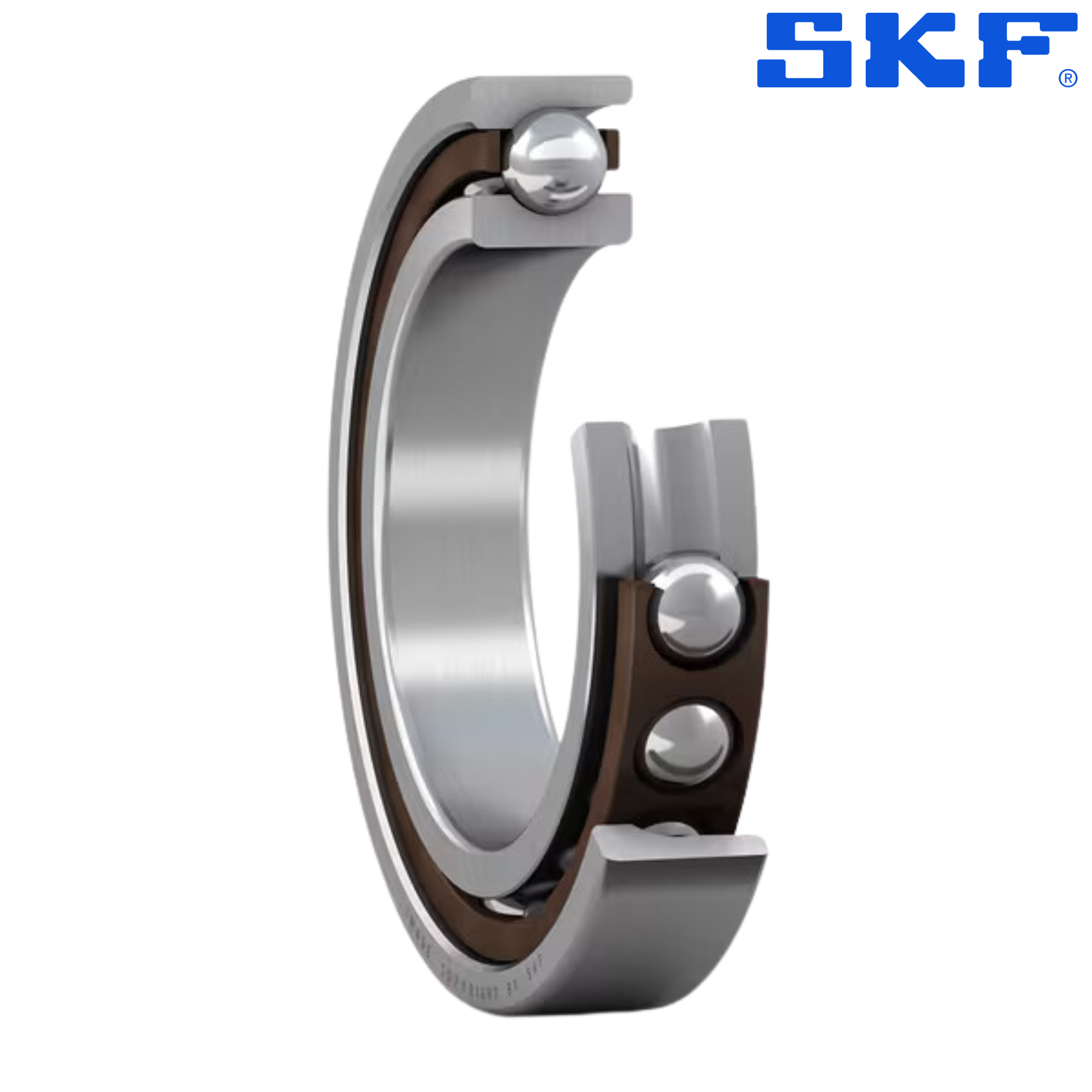

** Image is for representation purposes only
