Description
Brand - SKF
Item Number - 7008 CB/HCP4A SKF
Category - Angular Contact Ball Bearing Single Row

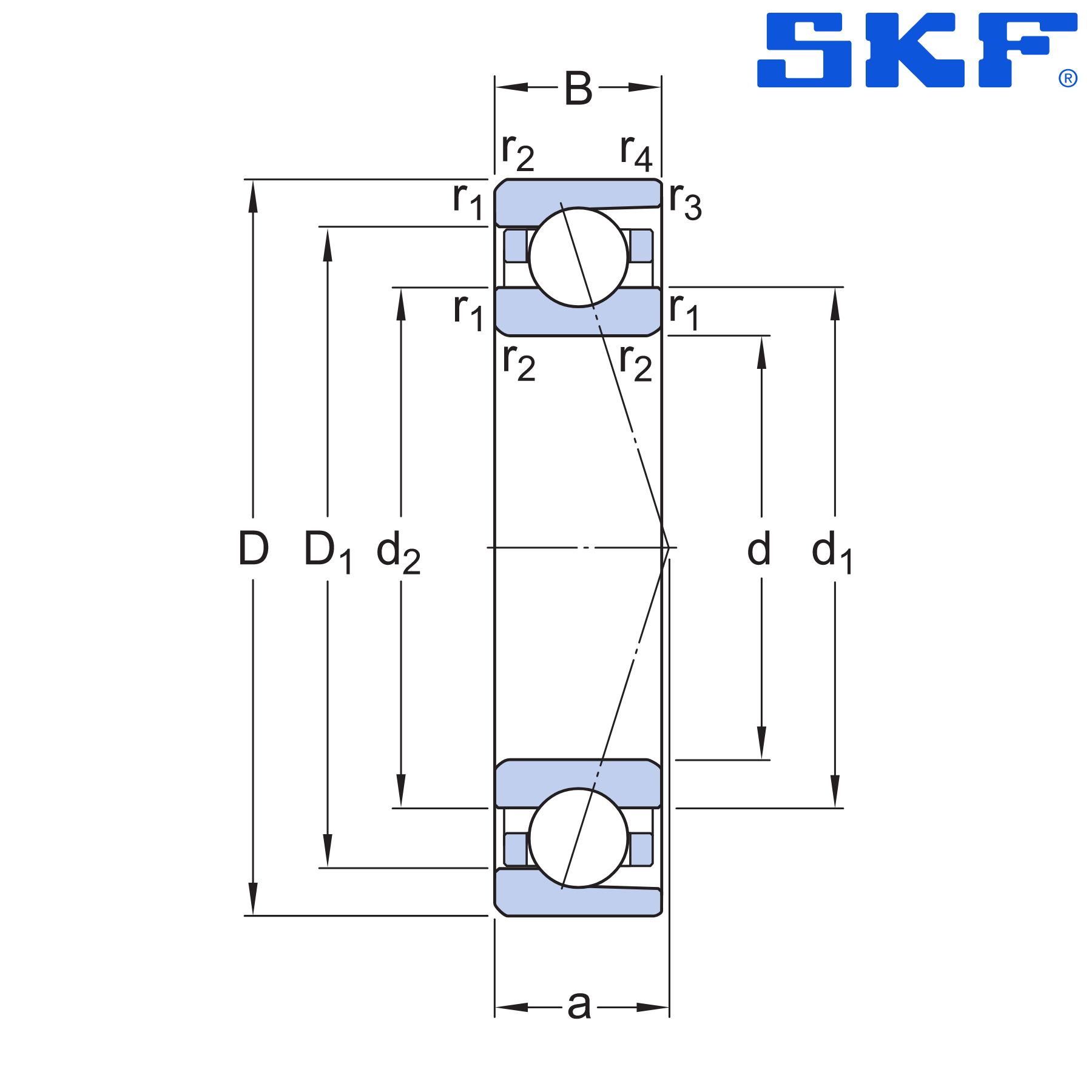

Inner Diameter (d) mm - 40
Outer Diameter (D) mm - 68
Width (B) mm - 15
Basic Dynamic Load Rating (C) kN - 7.41
Basic Static Load Rating (C0) kN - 5.6
Fatigue Load Limit (Pu) kN - 0.236
Attainable Grease Lubrication (r/min) - 34000
Speeds Oil-Air Lubrication (r/min) - 53000
Weight (kg) - 0.2
Large Side Face Shoulder Diameter of Inner Ring (d1) mm - 51
Small Side Face Shoulder Diameter of Inner Ring (d2) mm - 49.9
Large Side Face Shoulder Diameter of Outer Ring (D1) mm - 58.9
Small Side Face Shoulder Diameter of Outer Ring (D2) mm - 58.9
Minimum Chamfer Dimension (r1, r2) mm - 1
Minimum Chamfer Dimension (r3, r4) mm - 0.6
Minimum Diameter of Shaft Abutment (da) mm - 44.6
Minimum Diameter of Shaft Abutment (db) mm - 44.6
Maximum Diameter of Housing Abutment (Da) mm - 63.4
Maximum Diameter of Housing Abutment (Db) mm - 64.8
Maximum Radius of Fillet (ra) mm - 1
Maximum Radius of Fillet (rb) mm - 0.6
Position of Oil Nozzle (dn) mm - 51.6
Reference Grease Quantity (Gref) cm3 - 2.2
Calculation Factor for Equivalent Loads (f0) - 9.8

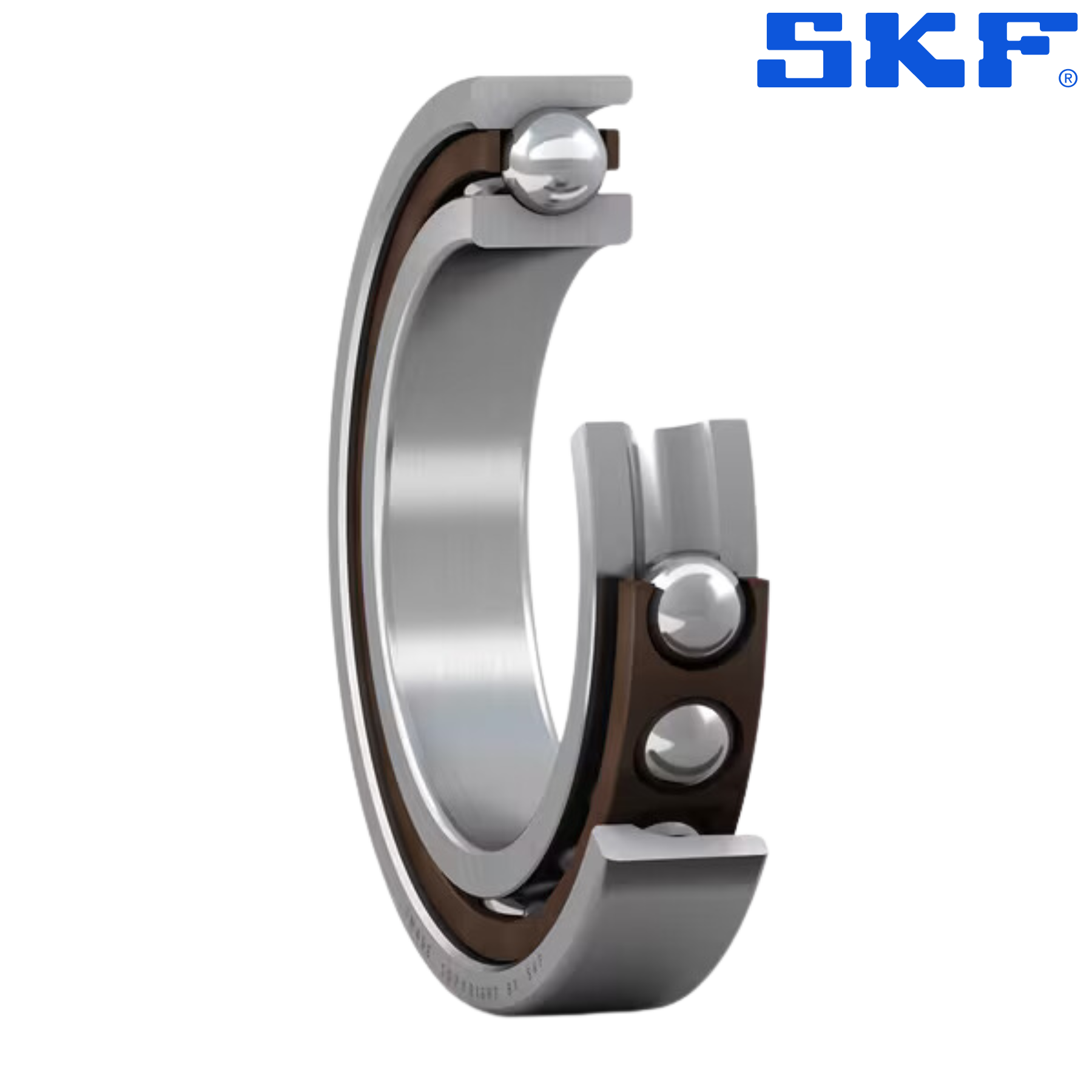

** Image is for representation purposes only
