Description
Brand - SKF
Item Number - 7007 CD/P4A SKF
Category - Angular Contact Ball Bearing Single Row
Inner Diameter (d) mm - 35
Outer Diameter (D) mm - 62
Width (B) mm - 14
Basic Dynamic Load Rating (C) kN - 15.6
Basic Static Load Rating (C0) kN - 9.5
Fatigue Load Limit (Pu) kN - 0.4
Attainable Grease Lubrication (r/min) - 24000
Speeds Oil-Air Lubrication (r/min) - 36000
Weight (kg) - 0.15

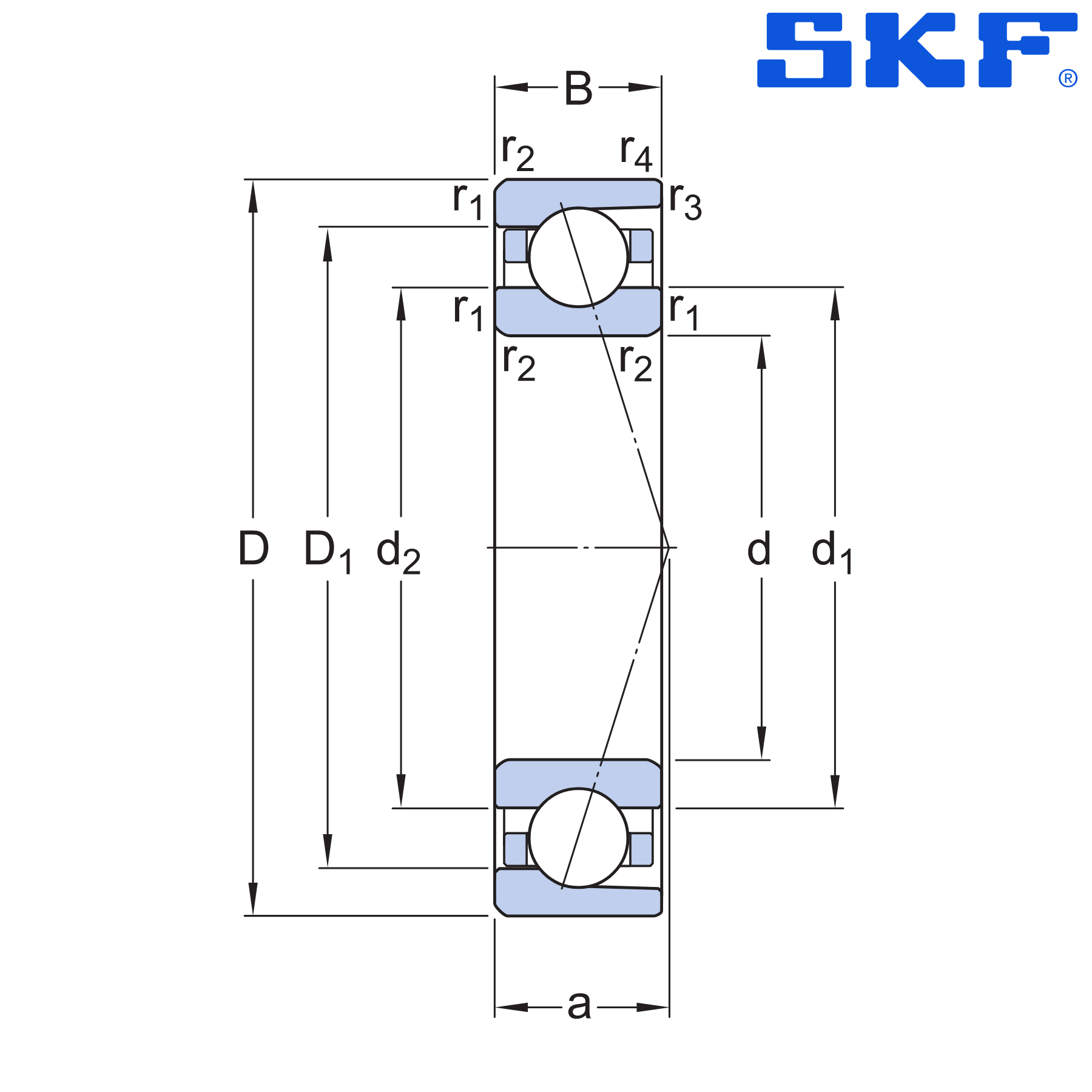

Large Side Face Shoulder Diameter of Inner Ring (d1) mm - 43.7
Small Side Face Shoulder Diameter of Inner Ring (d2) mm - 43.7
Large Side Face Shoulder Diameter of Outer Ring (D1) mm - 53.3
Small Side Face Shoulder Diameter of Outer Ring (D2) mm - 55.6
Minimum Chamfer Dimension (r1, r2) mm - 1
Minimum Chamfer Dimension (r3, r4) mm - 0.3
Minimum Diameter of Shaft Abutment (da) mm - 39.6
Minimum Diameter of Shaft Abutment (db) mm - 39.6
Maximum Diameter of Housing Abutment (Da) mm - 57.4
Maximum Diameter of Housing Abutment (Db) mm - 60
Maximum Radius of Fillet (ra) mm - 1
Maximum Radius of Fillet (rb) mm - 0.3
Position of Oil Nozzle (dn) mm - 45.3
Reference Grease Quantity (Gref) cm3 - 2
Calculation Factor for Equivalent Loads (f0) - 9.7

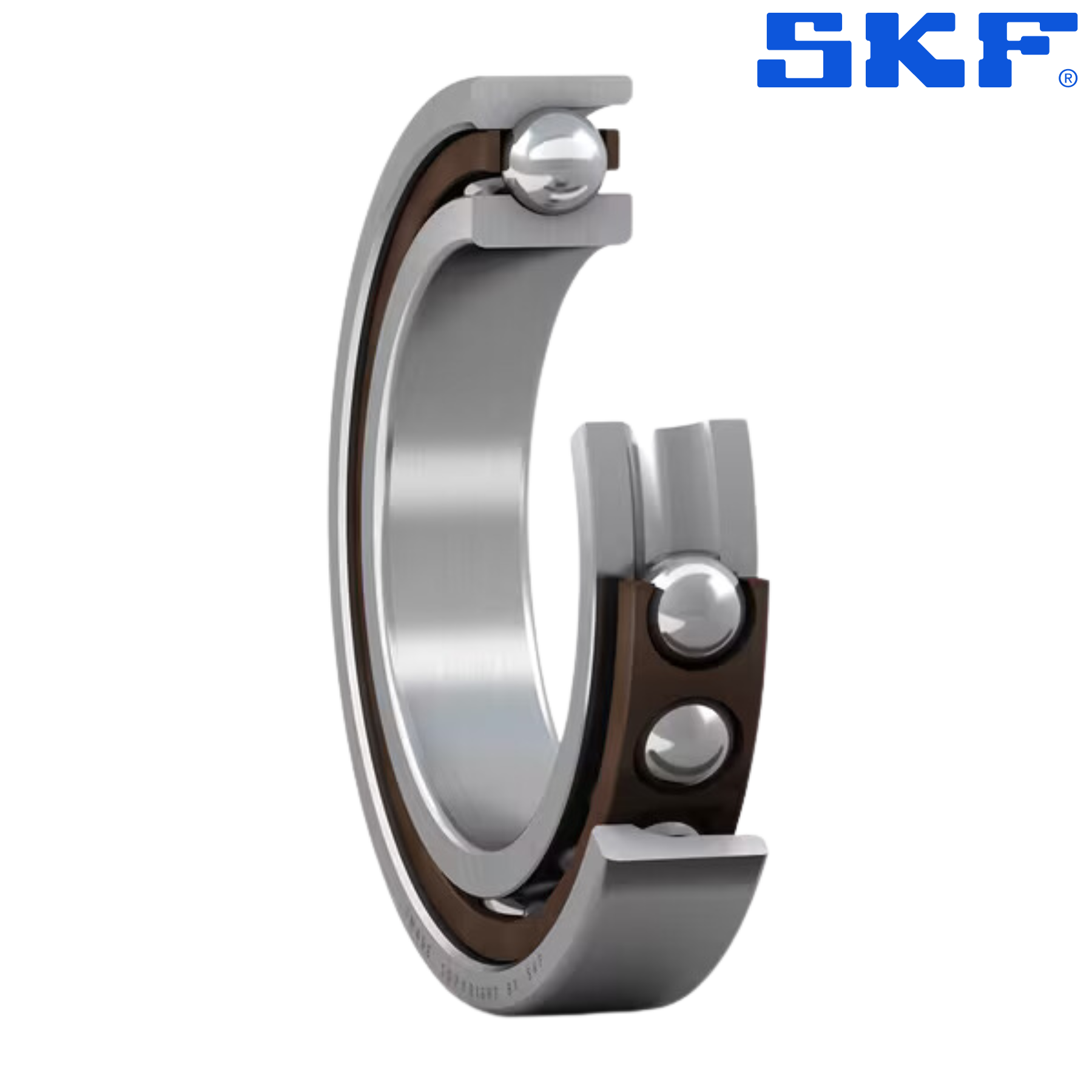

** Image is for representation purposes only
