7007 CB/P4A SKF


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - SKF
Item Number - 7007 CB/P4A SKF
Category - Angular Contact Ball Bearing Single Row
Inner Diameter (d) mm - 35
Outer Diameter (D) mm - 62
Width (B) mm - 14
Basic Dynamic Load Rating (C) kN - 6.89
Basic Static Load Rating (C0) kN - 4.8
Fatigue Load Limit (Pu) kN - 0.204
Attainable Grease Lubrication (r/min) - 32000
Speeds Oil-Air Lubrication (r/min) - 48000
Weight (kg) - 0.17
Large Side Face Shoulder Diameter of Inner Ring (d1) mm - 45.5
Small Side Face Shoulder Diameter of Inner Ring (d2) mm - 44.3
Large Side Face Shoulder Diameter of Outer Ring (D1) mm - 53.4
Small Side Face Shoulder Diameter of Outer Ring (D2) mm - 53.4
Minimum Chamfer Dimension (r1, r2) mm - 1
Minimum Chamfer Dimension (r3, r4) mm - 0.6
Minimum Diameter of Shaft Abutment (da) mm - 39.6
Minimum Diameter of Shaft Abutment (db) mm - 39.6
Maximum Diameter of Housing Abutment (Da) mm - 57.4
Maximum Diameter of Housing Abutment (Db) mm - 58.8
Maximum Radius of Fillet (ra) mm - 1
Maximum Radius of Fillet (rb) mm - 0.6
Position of Oil Nozzle (dn) mm - 46.1
Reference Grease Quantity (Gref) cm3 - 1.8
Calculation Factor for Equivalent Loads (f0) - 9.6

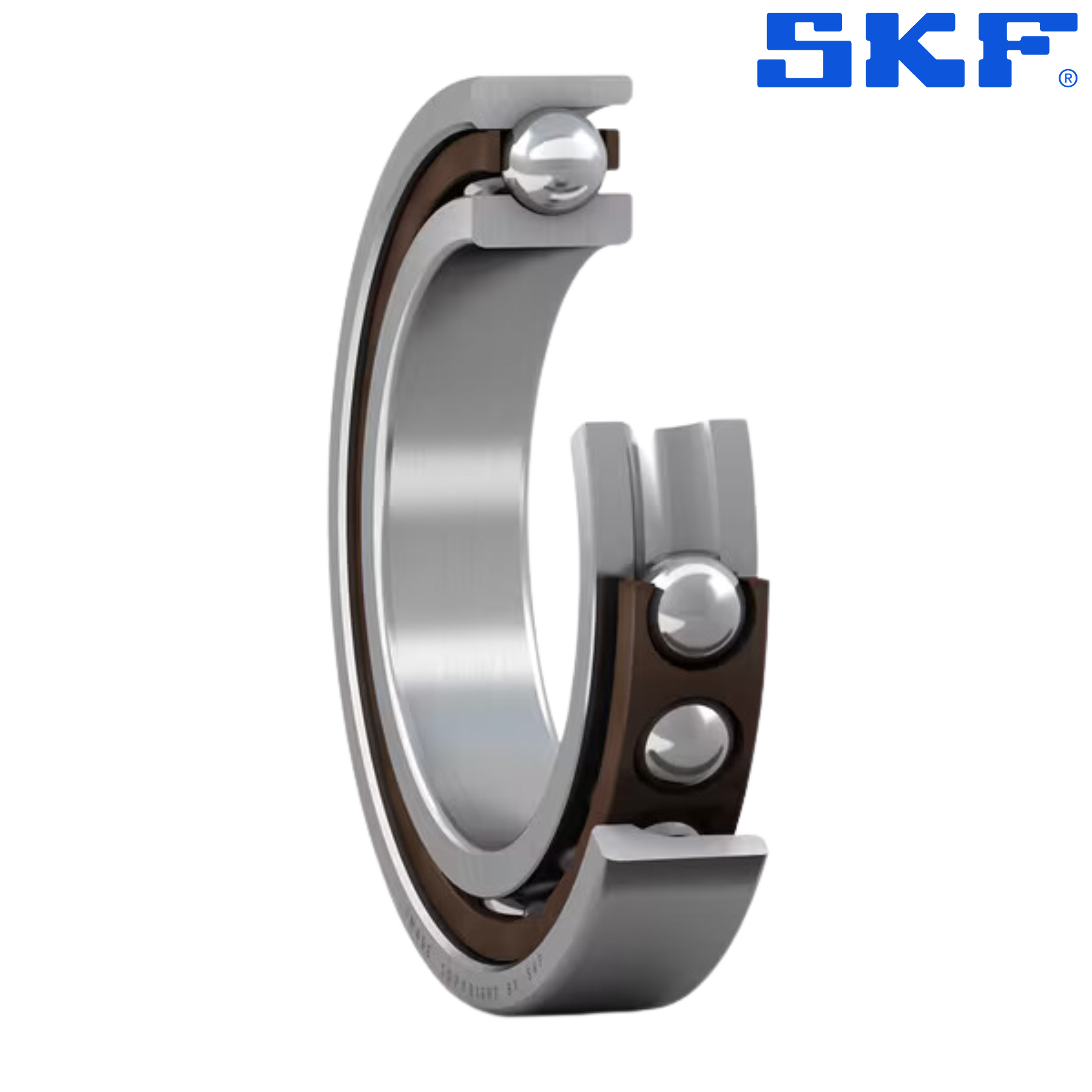

** Image is for representation purposes only
