Description
Brand - SKF
Item Number - 7005 ACE/HCP4AH1 SKF
Category - Super Precision Angular Contact Ball Bearing Single Row
Inner Diameter (d) mm - 25
Outer Diameter (D) mm - 47
Width (B) mm - 12
Basic Dynamic Load Rating (C) kN - 7.93
Basic Static Load Rating (C0) kN - 3.9
Attainable Speeds With Grease Lubrication (rpm) - 50000
Attainable Speeds With Oil Lubrication (rpm) - 75000

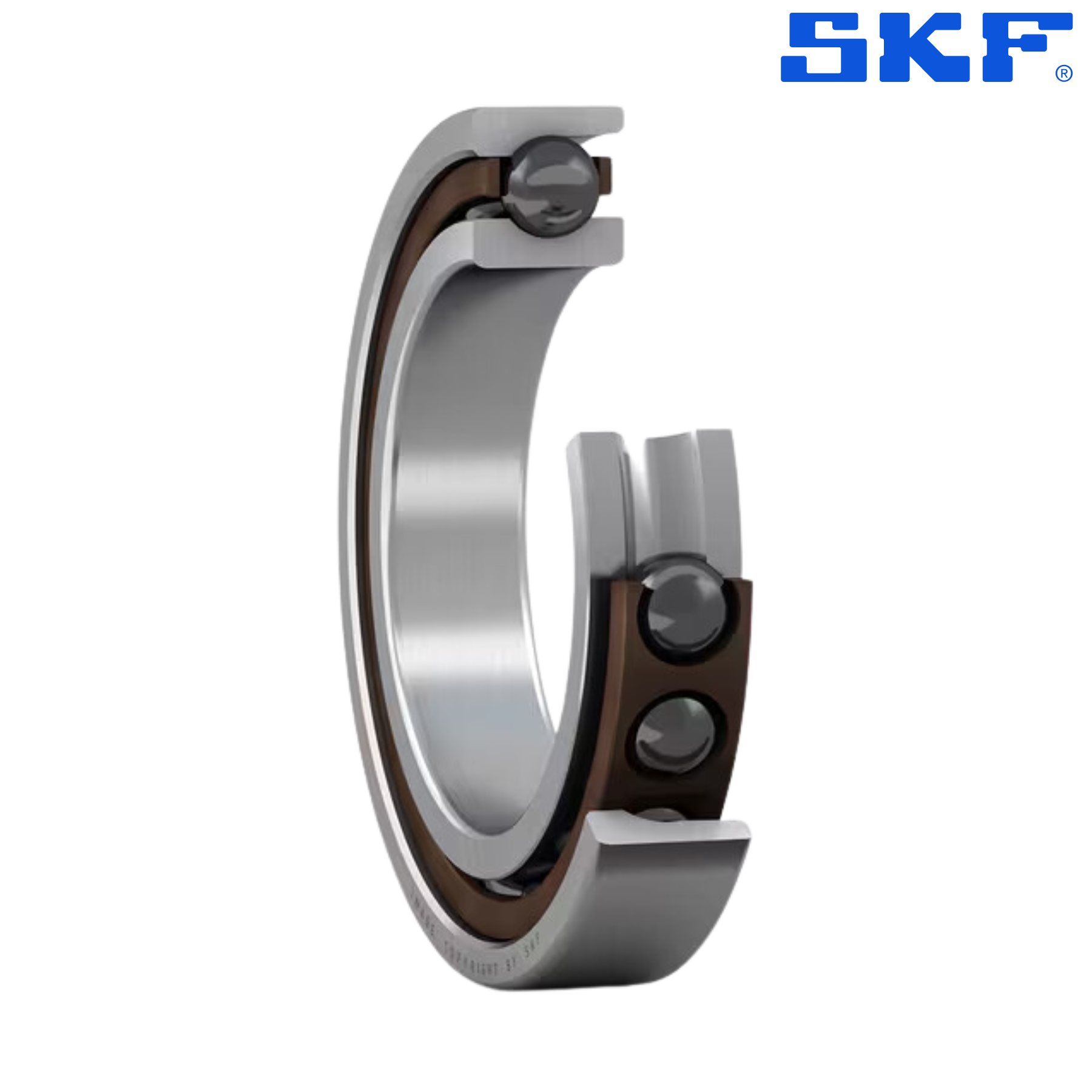

** Image is for representation purposes only
