7004-B-XL-2RS-TVP FAG

Brand - FAG
Item Number - 7004-B-XL-2RS-TVP FAG
Category - Angular Contact Ball Bearing Single Row
Bore diameter (d) mm - 20
Outside Diameter (D) mm - 42
Width (B) mm - 12
Basic Dynamic Load Rating, Radial (Cr) N - 14500
Basic Static Load Rating, Radial (C0r) N - 8000
Fatigue Load Limit, Radial (Cur) N - 560
Limiting Speed (nG) min–1 - 9800
Weight (m) kg - 0.061
Minimum Chamfer Dimension (r min) mm - 0.6
Minimum Chamfer Dimension (r1 min) mm - 0.3
Shoulder Diameter on Outer Ring Wide Side Face (D1) mm - 34.8
Caliber Diameter on Outer Ring Wide Side Face (D2) mm - 35.5
Caliber Diameter on Outer Ring Small Side Face (D3) mm - 39.8
Caliber Diameter on Inner Ring Wide Side Face (d2) mm - 26.5
Distance Between the Apexes of the Pressure Cones (a) mm - 19.4
Nominal Contact Angle (α)° - 40

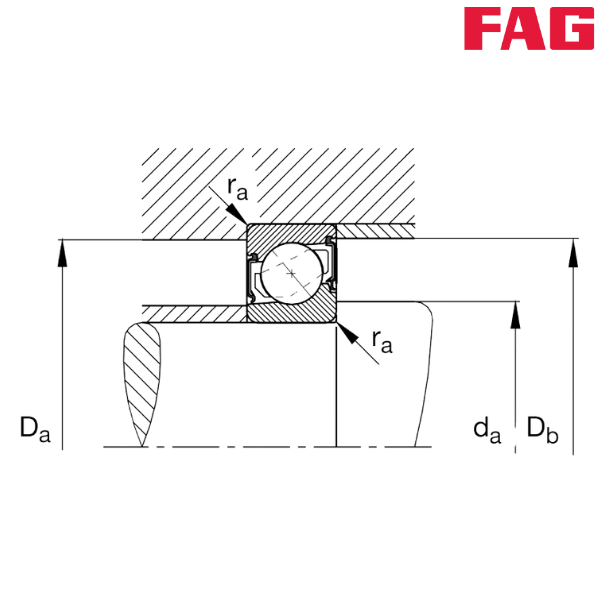

Minimum Diameter of Shaft Shoulder (da) mm - 23.2
Maximum Diameter of Housing Shoulder (Da) mm - 38.8
Maximum Diameter of Housing Shoulder (Db) mm - 40
Maximum Fillet Radius of Shaft (ra) mm - 0.6
Maximum Fillet Radius of Housing (ra1) mm - 0.3

Descriptions of Suffixes :
--------------------------------------------------------------------------
B - Modified Internal Construction, Nominal Contact Angle α = 40°
TVP - Solid Cage Made from Glass Fibre Reinforced Polyamide PA66
2RS - Contact Seal on Both Sides (Lip Seal)
XL - X-Life Bearing, Dependent on Bore Code and Bearing Type
