Description
Brand - SKF
Item Number - 7003 CE/HCP4AH SKF
Category - Super Precision Angular Contact Ball Bearing Single Row
Inner Diameter (d) mm - 17
Outer Diameter (D) mm - 35
Width (B) mm - 10
Basic Dynamic Load Rating (C) kN - 5.85
Basic Static Load Rating (C0) kN - 2.55
Attainable Speeds With Grease Lubrication (rpm) - 75000
Attainable Speeds With Oil Lubrication (rpm) - 115000

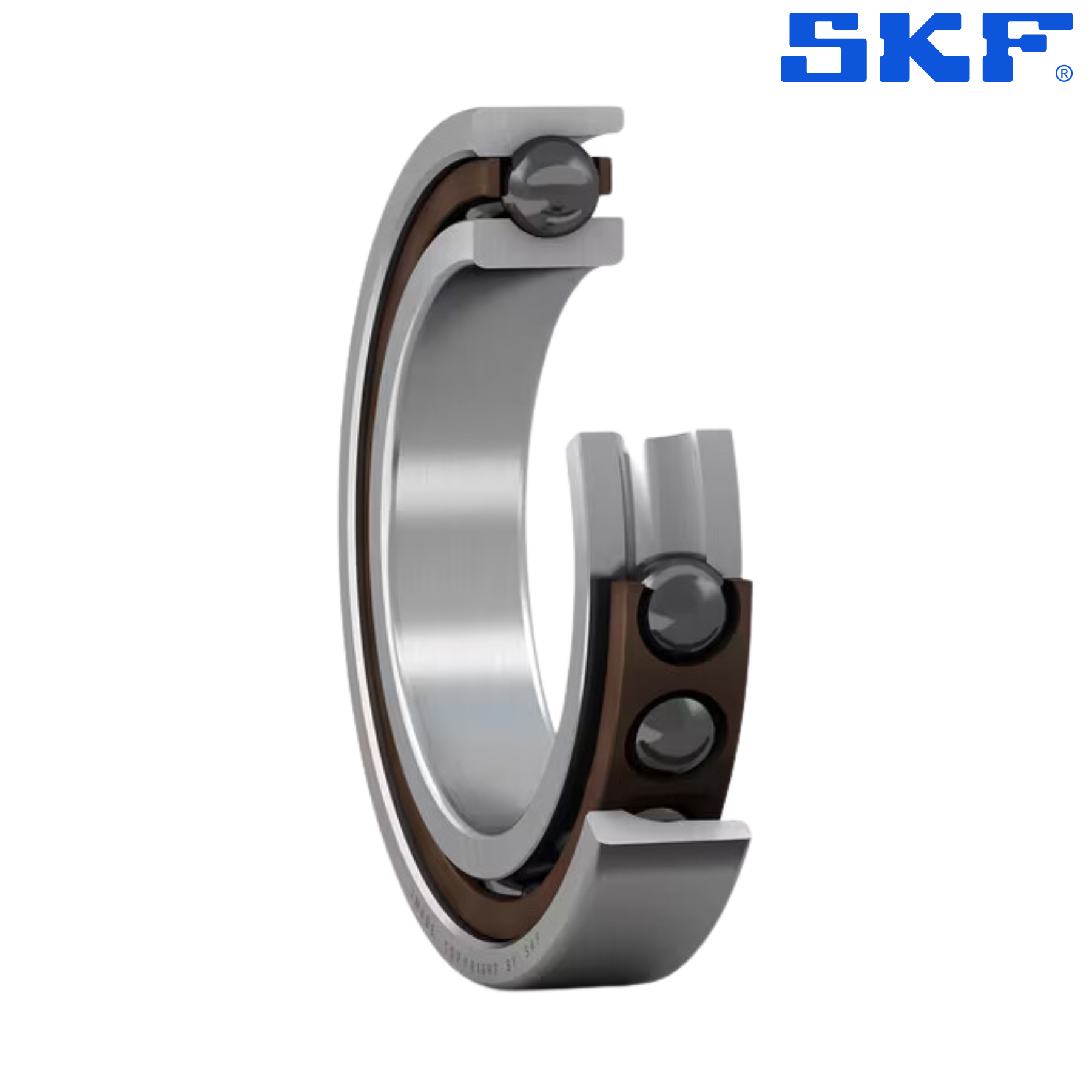

** Image is for representation purposes only
