Description
Brand - SKF
Item Number - 7003 ACE/HCP4AH SKF
Category - Super Precision Angular Contact Ball Bearing Single Row
Inner Diameter (d) mm - 17
Outer Diameter (D) mm - 35
Width (B) mm - 10
Basic Dynamic Load Rating (C) kN - 5.59
Basic Static Load Rating (C0) kN - 2.45
Attainable Speeds With Grease Lubrication (rpm) - 68000
Attainable Speeds With Oil Lubrication (rpm) - 103000

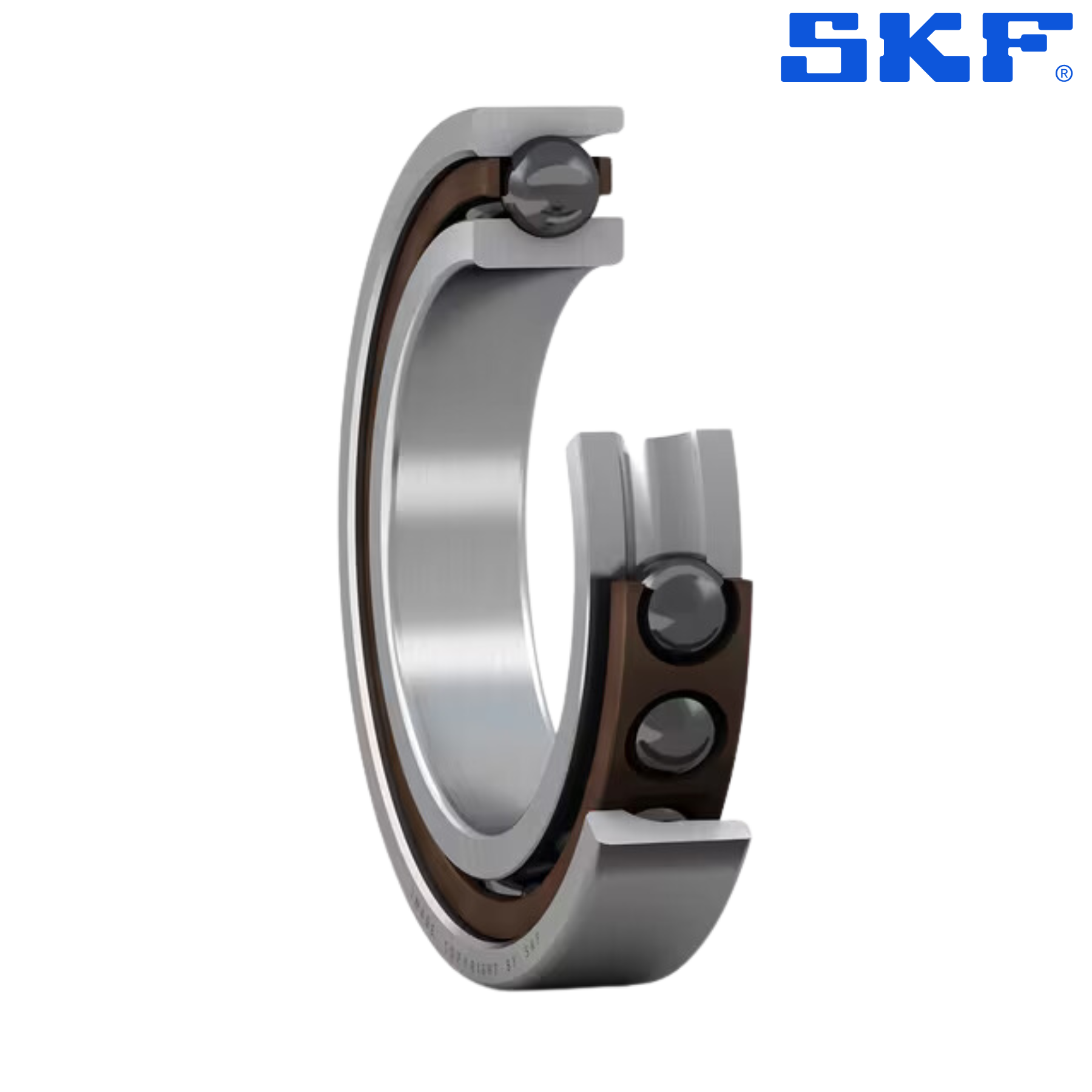

** Image is for representation purposes only
