Description
Brand - SKF
Item Number - 7003 ACD/HCP4ADBD SKF
Category - Super Precision Angular Contact Ball Bearing Single Row
Inner Diameter (d) mm - 17
Outer Diameter (D) mm - 35
Width (B) mm - 20
Basic Dynamic Load Rating (C) kN - 10.6
Basic Static Load Rating (C0) kN - 6.2

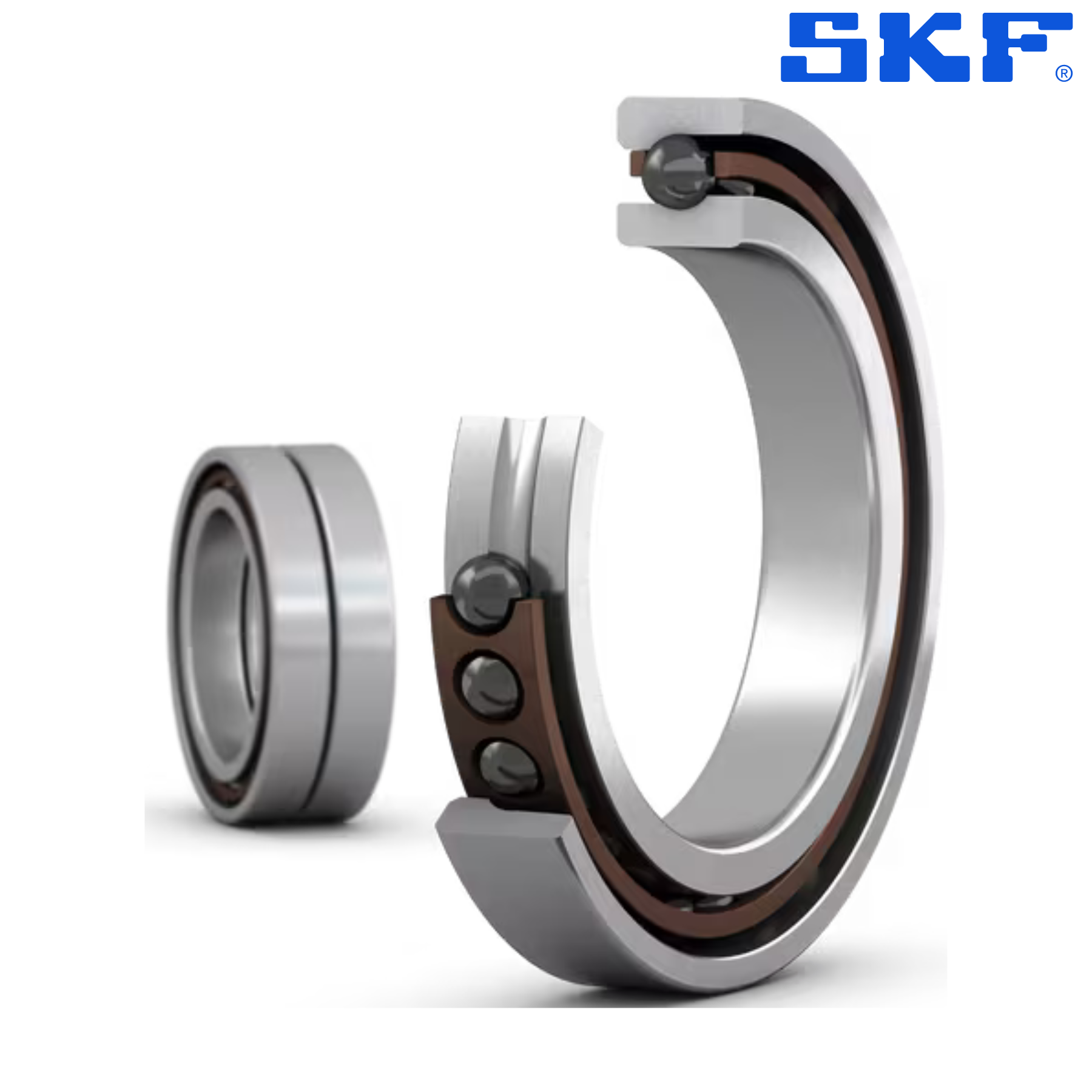

** Image is for representation purposes only
