Description
Brand - IBC BEARING
Item Number - 7001E T P2H UM IBC BEARING
Category - Angular Contact Ball Bearing Single Row
Also known as - 7001ACDGB/P4A
Inner (d) MM - 12
Outer (D) MM - 28
Width (B) MM - 8
Weight (kg) - 0.02
Seal - No Seal
Cage Type - TB - Hard Fiber Cage
Precision - P4 Precision (Higher than P5)
Contact Angle - 25 degrees
Pairing - G - Universal Pairing
Axial Internal Clearance / Preload - GB - Medium Preload
Lubrication - Standard Lubrication

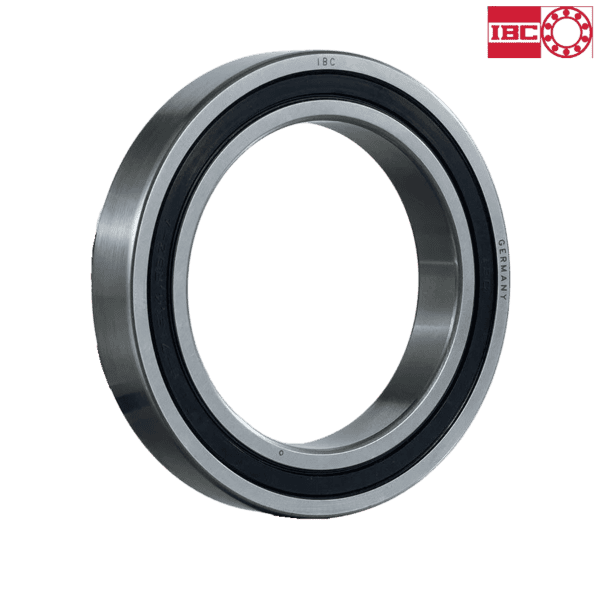

** Image is for representation purposes only
