7000 CE/P4A SKF


Country Of Origin: Imported
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - SKF
Item Number - 7000 CE/P4A SKF
Category - Angular Contact Ball Bearing Single Row

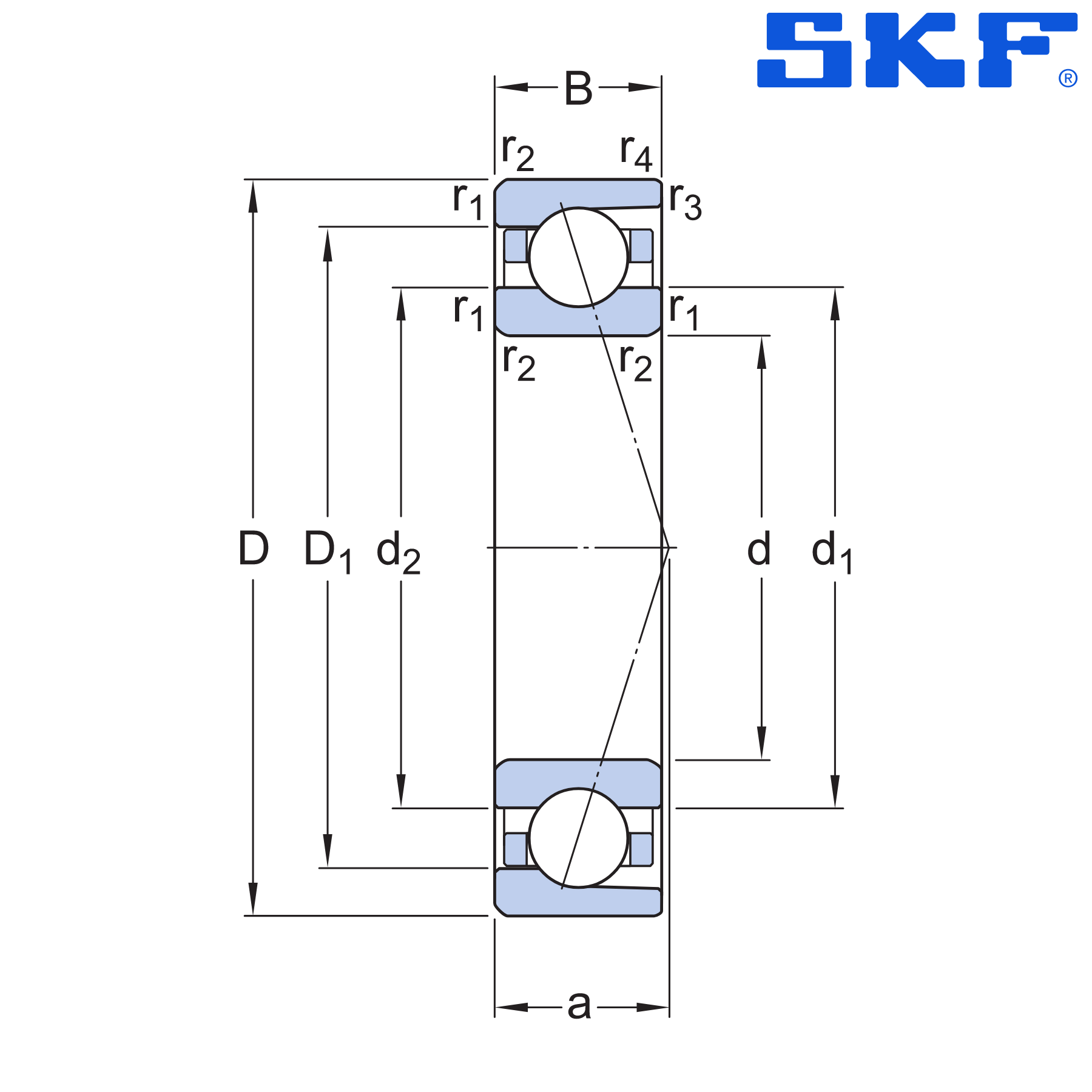

Inner Diameter (d) mm - 10
Outer Diameter (D) mm - 26
Width (B) mm - 8
Basic Dynamic Load Rating (C) kN - 3.02
Basic Static Load Rating (C0) kN - 1.18
Fatigue Load Limit (Pu) kN - 0.05
Attainable Grease Lubrication (r/min) - 90000
Speeds Oil-Air Lubrication (r/min) - 140000
Weight (kg) - 0.019
Large Side Face Shoulder Diameter of Inner Ring (d1) mm - 15.6
Small Side Face Shoulder Diameter of Inner Ring (d2) mm - 14.5
Large Side Face Shoulder Diameter of Outer Ring (D1) mm - 22.4
Small Side Face Shoulder Diameter of Outer Ring (D2) mm - 22.4
Minimum Chamfer Dimension (r1, r2) mm - 0.3
Minimum Chamfer Dimension (r3, r4) mm - 0.3
Minimum Diameter of Shaft Abutment (da) mm - 12
Minimum Diameter of Shaft Abutment (db) mm - 12
Maximum Diameter of Housing Abutment (Da) mm - 24
Maximum Diameter of Housing Abutment (Db) mm - 23.6
Maximum Radius of Fillet (ra) mm - 0.3
Maximum Radius of Fillet (rb) mm - 0.3
Position of Oil Nozzle (dn) mm - 16.5
Reference Grease Quantity (Gref) cm3 - 0.28
Calculation Factor for Equivalent Loads (f0) - 7.1

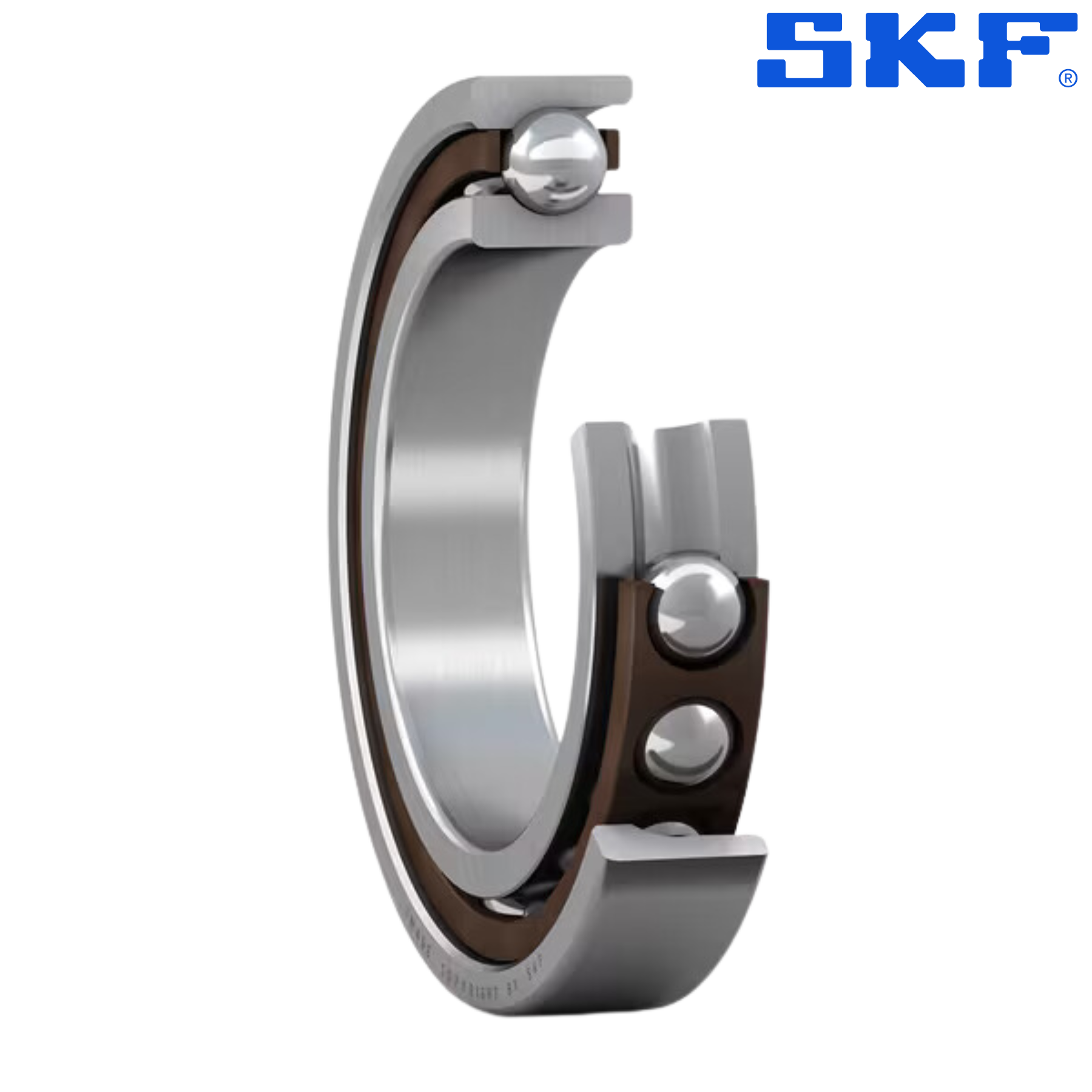

** Image is for representation purposes only
