Description
Brand - ZEN
Item Number - 688-2Z.T9H.C3 ZEN

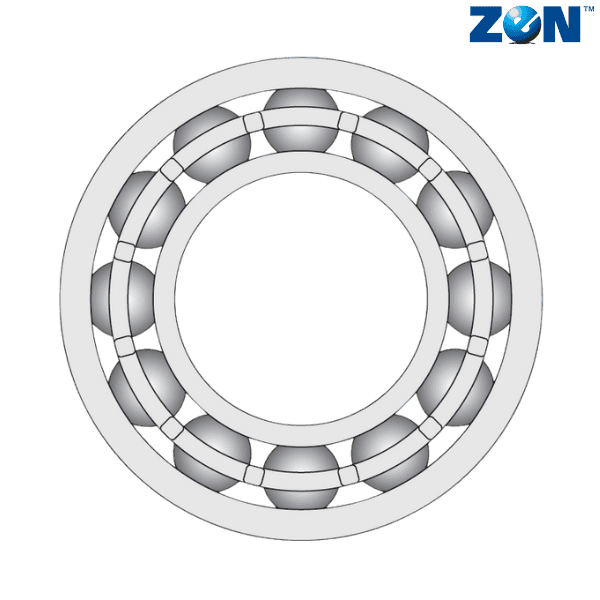

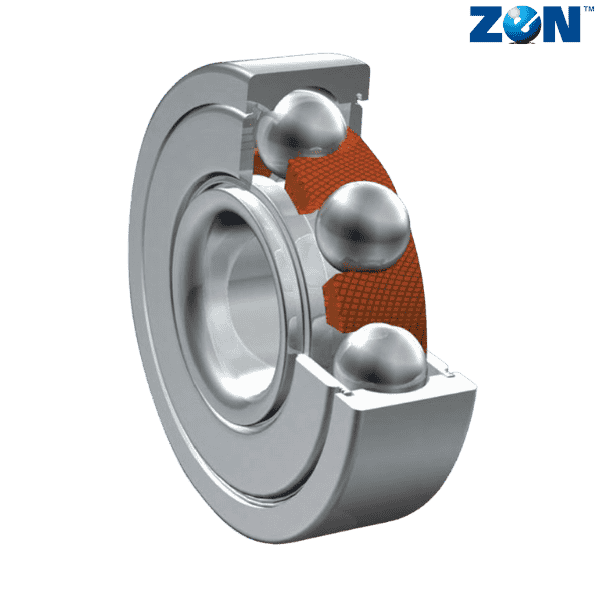

Category - Radial Ball Bearing with Plastic Cage

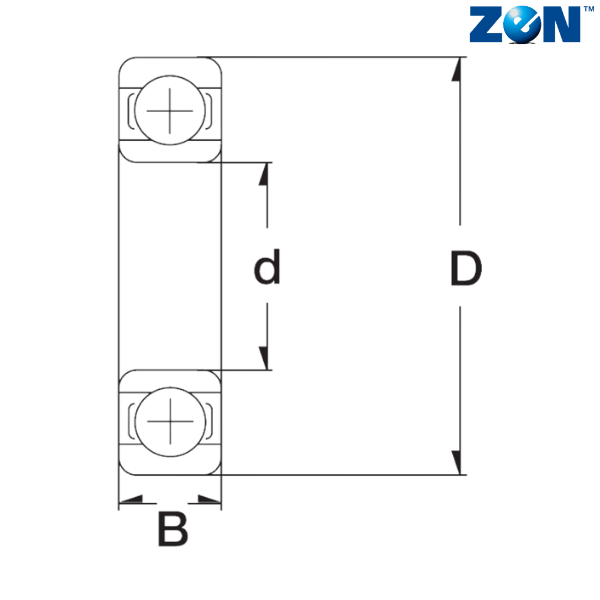

Inner Ring Dimension (d) mm - 8
Outer Ring Dimension (D) mm - 16
Width (B) mm - 5
Dynamic Load Rating (N) - 1260
Static Load Rating (N) - 590
Limiting Speed - 36
Weight (kg) - 0.004
Radial Play - 0.008 - 0.023
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Notes :
2Z - Metal Shields
T9H - Glass Fibre Reinforced Cage
** Images are for representation purposes only
