683/672 (Y6S-672) TIMKEN

Brand - TIMKEN
Item Number - 683/672 (Y6S-672) TIMKEN
Also Known As - 683 - 672 (Y6S-672)
Category - Double Row Tapered Roller Bearing (2TS-DM Type)
Bore Diameter (d) mm - 95.25
Bore Diameter (d) inch - 3.75
Outer Diameter (D) mm - 168.275
Outer Diameter (D) inch - 6.625
Width (T) mm - 82.55
Width (T) inch - 3.25
Width (B) mm - 82.55
Width (B) inch - 3.25
Dynamic Radial Rating (C1) N - 461000
Dynamic Radial Rating (C1) lbf - 104000
Factor (e) - 0.47
Factor (Y1) - 1.43
Factor (Y2) - 2.14
Dynamic Radial Rating (90 million revolutions) (C90) N - 68600
Dynamic Radial Rating (90 million revolutions) (C90) lbf - 15400
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 55300
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 12400
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) N - 119000
Dynamic Radial Rating (Two-Row, 90 million revolutions) (C90(2)) lbf - 26900
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.24
Maximum Shaft Fillet Radius (R) mm - 0.5
Maximum Shaft Fillet Radius (R) inch - 0.02
Backing Shoulder Diameter (db) mm - 106
Backing Shoulder Diameter (db) inch - 4.17
Maximum Housing Fillet Radius (r) mm - 3.3
Maximum Housing Fillet Radius (r) inch - 0.13
Cup Frontface Backing Diameter (Da) mm - 149
Cup Frontface Backing Diameter (Da) inch - 5.87
Weight (kg) - 7.81
Weight (lbs) - 17.21
Outer Spacer - Y6S-672
Inner Part Number - 683
Outer Part Number - 672

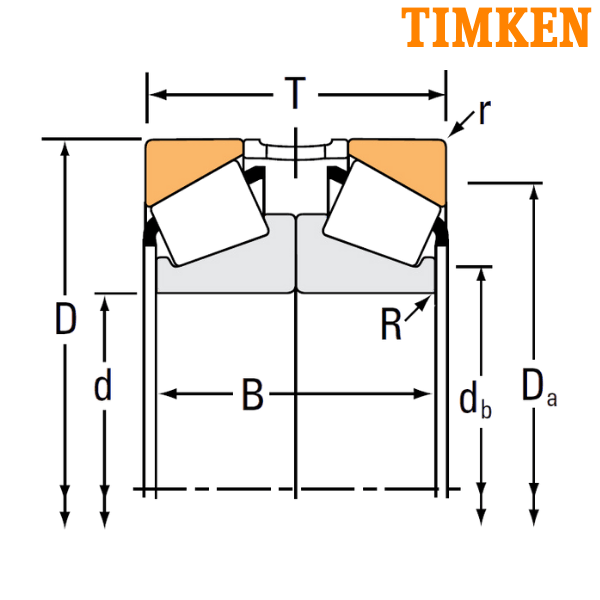

2TS-DM - Two Single-Row Bearings with an Inner-Ring and Outer-Ring Spacer, Direct Mounting

** Images are for representation purposes only
