6580/6535-B TIMKEN

Brand - TIMKEN
Item Number - 6580/6535-B TIMKEN
Also Known As - 6580 - 6535-B
Category - Single Row Tapered Roller Bearing (TSF Type)
Bore Diameter (d) mm - 88.9
Bore Diameter (d) inch - 3.5
Outer Diameter (D) mm - 161.925
Outer Diameter (D) inch - 6.375
Width (T1) mm - 19.05
Width (T1) inch - 0.75
Dynamic Load Rating (C1) N - 439000
Dynamic Load Rating (C1) lbf - 98800
Factor (e) - 0.4
Factor (Y) - 1.5
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 114000
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 25600
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 78100
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 17600
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 1.46
Basic Static Radial Load Rating (C0) N - 523000
Basic Static Radial Load Rating (C0) lbf - 118000
Cone Width (B) mm - 55.1
Cone Width (B) inch - 2.1693
Cup Width (C) mm - 42.862
Cup Width (C) inch - 1.6875
Effective Center Location (a) mm - -13.2
Effective Center Location (a) inch - -0.52
Outer Diameter of Outer Ring Flange (D1) mm - 171.45
Outer Diameter of Outer Ring Flange (D1) inch - 6.75
Flange Width (C2) mm - 7.938
Flange Width (C2) inch - 0.3125

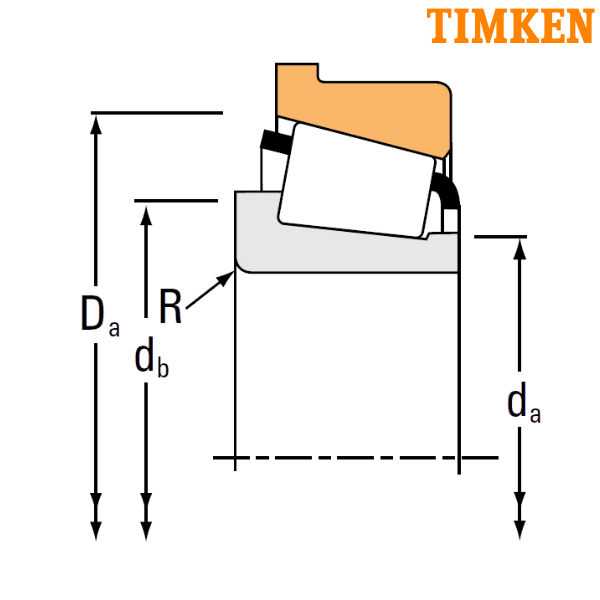

Maximum Shaft Fillet Radius (R) mm - 3.5
Maximum Shaft Fillet Radius (R) inch - 0.14
Cone Frontface Backing Diameter (da) mm - 102
Cone Frontface Backing Diameter (da) inch - 4.02
Cone Backface Backing Diameter (db) mm - 117
Cone Backface Backing Diameter (db) inch - 4.61
Cup Frontface Backing Diameter (Da) mm - 155
Cup Frontface Backing Diameter (Da) inch - 6.1
Geometry Factor (G1) - 198.6
Geometry Factor (G2) - 33.5
Geometry Factor (Cg) - 0.1037
Weight (kg) - 4.77
Weight (lbs) - 10.53
Inner Part Number - 6580
Outer Part Number - 6535-B
TSF - Single-Row Bearing with a Flange on the Outer Ring

** Images are for representation purposes only
