Description
Brand - NILOS
Item Number - 6409 JV NILOS
Category - NILOS-RING for Single Row Deep Groove Ball Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (i) - 58.2 mm
Dimension (c) - 94 mm
Outer Diamter (D) - 120 mm
Width (h) - 3 mm
Material Thickness (s) - 0.3 mm
Description of Compatible Bearing (64 Series) :
Bearing Part Number - 6409
Bearing Type - Double Row Self-Aligning Ball Bearing
Inner Diameter (d) - 45 mm
Outer Diameter (D) - 120 mm
Width (B) - 29 mm

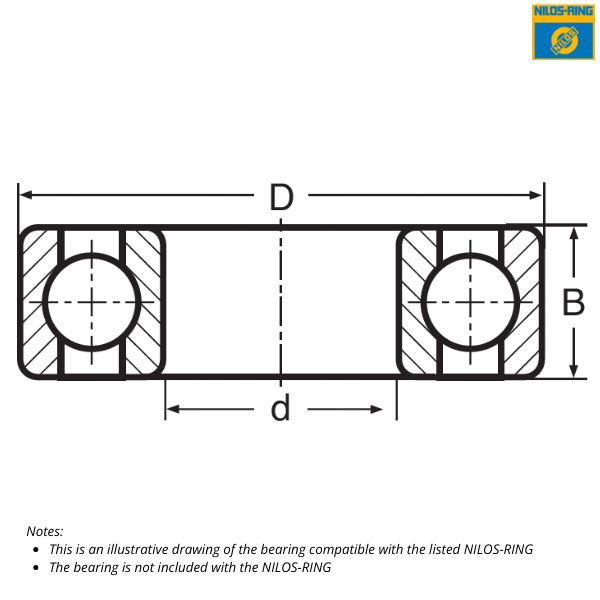

♦ ♦ Images are for representation purposes only
Item Number - 6409 JV NILOS
Category - NILOS-RING for Single Row Deep Groove Ball Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (i) - 58.2 mm
Dimension (c) - 94 mm
Outer Diamter (D) - 120 mm
Width (h) - 3 mm
Material Thickness (s) - 0.3 mm
Description of Compatible Bearing (64 Series) :
Bearing Part Number - 6409
Bearing Type - Double Row Self-Aligning Ball Bearing
Inner Diameter (d) - 45 mm
Outer Diameter (D) - 120 mm
Width (B) - 29 mm
♦ ♦ Images are for representation purposes only
