Description
Brand - FAG
Item Number - 6372-M-C3 FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter(d) mm - 360
Outer Diameter(D) mm - 750
Weight (Kg) - 293
Inner Width(B) mm - 125
Minimum Chamfer Dimension(r) mm - 7.5

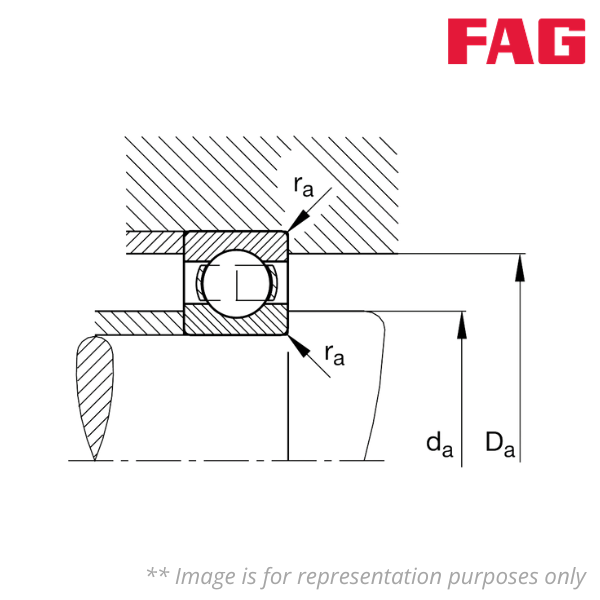

Shoulder diameter outer ring(D1) mm - 611
Shoulder diameter inner ring(d1) mm - 499
Minimum diameter shaft shoulder(da) mm - 365.6
Maximum diameter of housing shoulder(Da) mm - 744.4
Maximum fillet radius(ra) mm - 6
Basic Dynamic load rating(Cr) kN - 735
Basic Static load rating(C0r) kN - 1250
Fatigue limit load current(Cur) kN - 35
Calculation factor(f0) - 14.8
Limiting speed (RPM) - 1900
Reference speed (RPM) - 1100
