Description
Brand - FAG
Item Number - 6330-M FAG
Category - Deep Groove Ball Bearing Single Row

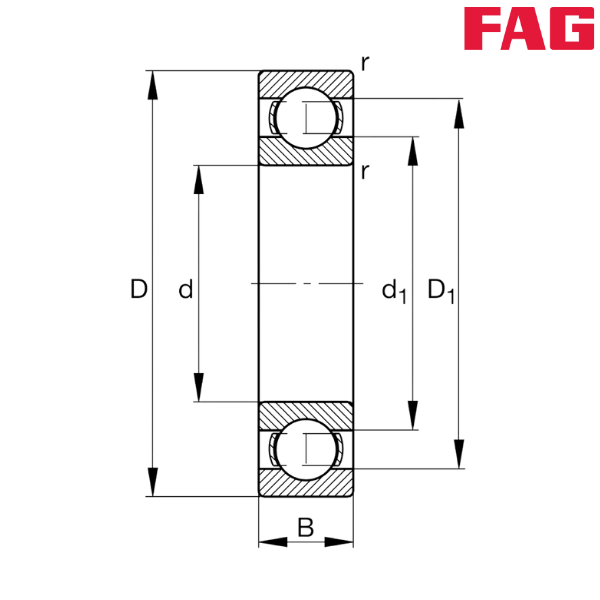

Inner Diameter (d) mm - 150
Outer Diameter (D) mm - 320
Width (B) mm - 65
Basic Dynamic Load Rating (Cr) N - 300000
Basic Static Load Rating (C0r) N - 290000
Fatigue Limit Load (Cur) N - 13500
Limiting Speed (nG) min–1 - 3600
Speed Rating (nϑr) min–1 - 3000
Calculation Factor (f0) - 13.7
Weight (m) kg - 26.14
Minimum Chamfer Dimension (r min) mm - 4
Shoulder Diameter Outer Ring (D1) mm - 266.2
Shoulder Diameter Inner Ring (d1) mm - 205.5

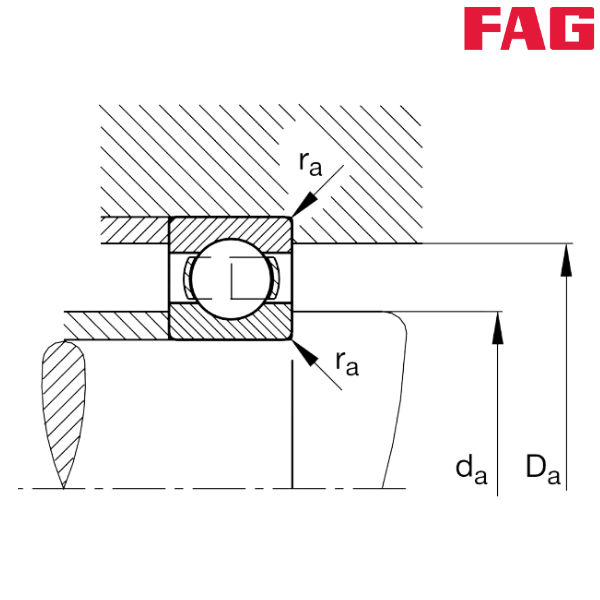

Minimum Diameter Shaft Shoulder (da) mm - 167
Maximum Diameter of Housing Shoulder (Da) mm - 303
Maximum Fillet Radius (ra) mm - 3
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
M - Solid Brass Cage, Ball-Guided

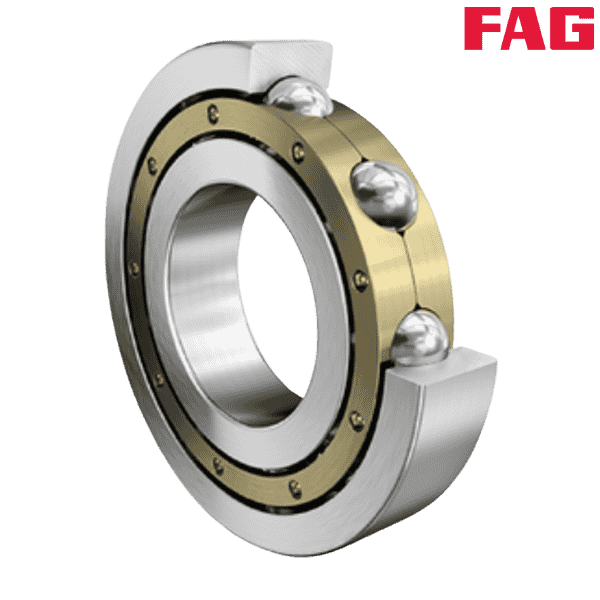

** Images are for representation purposes only
