Description
Brand - FAG
Item Number - 6322-2RSR FAG
Category - Deep Groove Ball Bearing Single Row

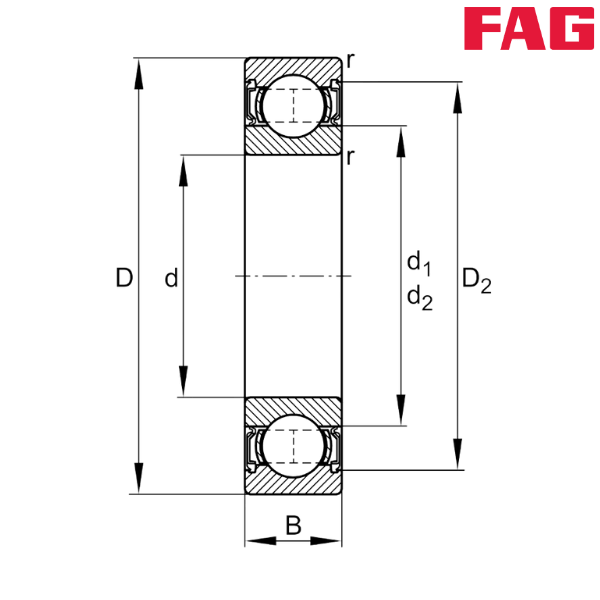

Inner Diameter (d) mm - 110
Outer Diameter (D) mm - 240
Width (B) mm - 50
Basic Dynamic Load Rating (Cr) N - 201000
Basic Static Load Rating (C0r) N - 165000
Fatigue Limit Load (Cur) N - 8800
Limiting Speed (nG) min–1 - 1750
Calculation Factor (f0) - 13.8
Weight (m) kg - 10.4
Minimum Chamfer Dimension (r min) mm - 3
Caliber Diameter Outer Ring (D2) mm - 203.14
Shoulder Diameter Inner Ring (d1) mm - 152.85

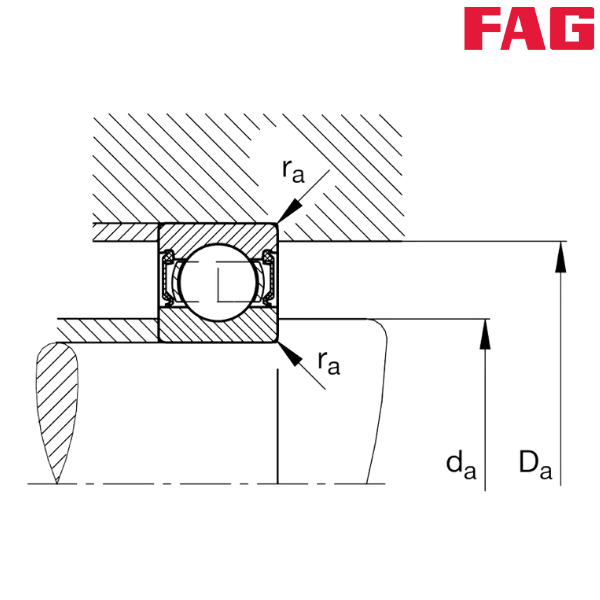

Minimum Diameter Shaft Shoulder (da) mm - 124
Maximum Diameter of Housing Shoulder (Da) mm - 226
Maximum Fillet Radius (ra) mm - 2.5
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
2RSR - Contact Seal on Both Sides (Lip Seal)

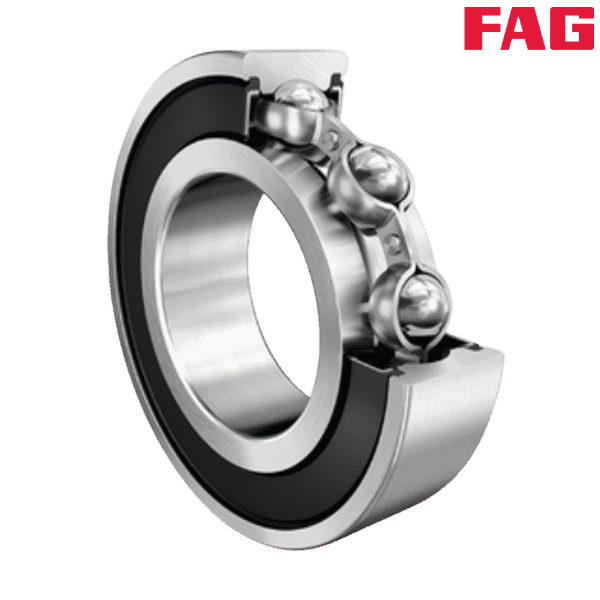

** Images are for representation purposes only
