6320 M/C3VL0241 SKF

SKF

Download Data Sheet

Country Of Origin: SWEDEN

Variant

Share this product

Brand - SKF
Item Number - 6320 M/C3VL0241 SKF

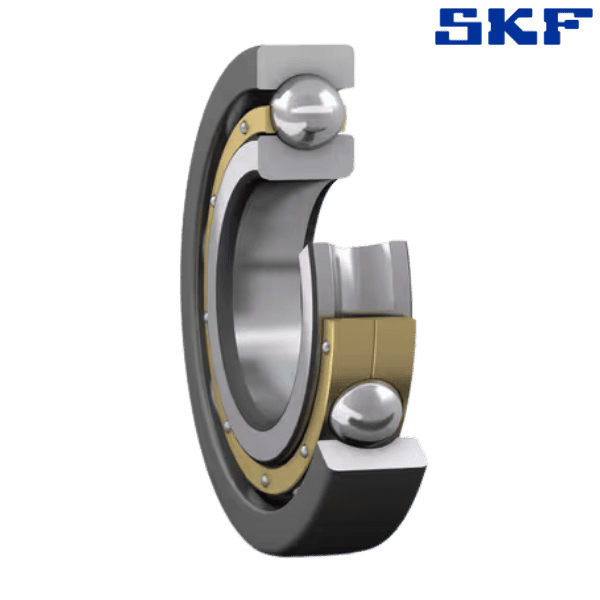

Category - Traction Motor, INSOCOAT Deep Groove Ball Bearings

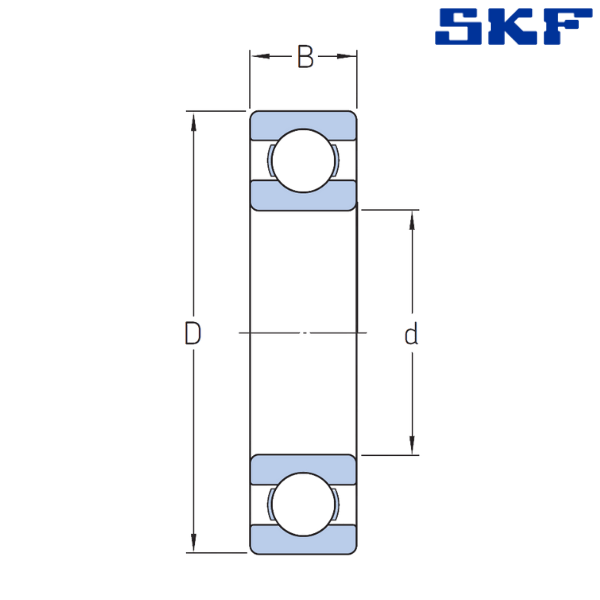

Bore Diameter (d) mm - 100
Outer Diameter (D) mm - 215
Width (B) mm - 47
Dynamic Load Rating (C) kN - 174
Static Load Rating (C0) kN - 140
Limiting Speed (r/min) - 4300
Weight (Kg) - 8.06

Designation Prefixes and Suffixes:

M - Machined Brass Cage, Rolling Element Centred
C3 - Bearing Internal Clearance Greater Than Normal (CN)
VL - This Suffix is Followed By Three or Four Digit Numbers Refer to Special Executions.
Example: VL0241 Aluminium Oxide Coated Outside Surface of Outer Ring for Electrical Resistance up to 3000V DC

** Images are for representation purposes only
