Description
Brand - FAG
Item Number - 6320-2RSR FAG
Category - Deep Groove Ball Bearing Single Row

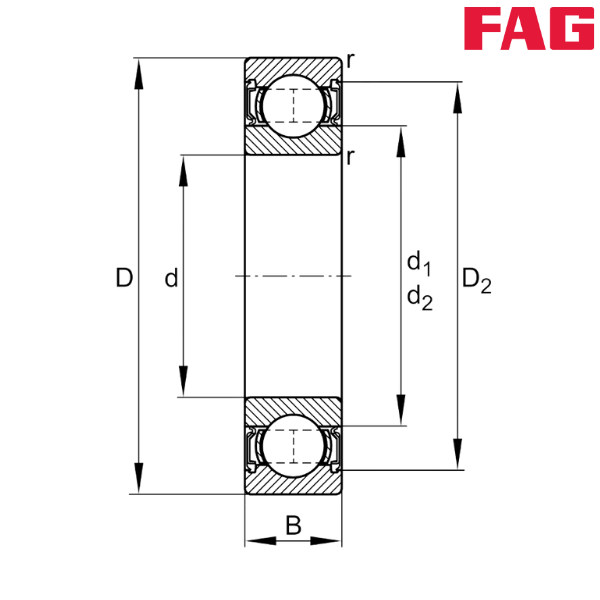

Inner Diameter (d) mm - 100
Outer Diameter (D) mm - 215
Width (B) mm - 47
Basic Dynamic Load Rating (Cr) N - 177000
Basic Static Load Rating (C0r) N - 137000
Fatigue Limit Load (Cur) N - 7400
Limiting Speed (nG) min–1 - 1940
Calculation Factor (f0) - 13.7
Weight (m) kg - 7.53
Minimum Chamfer Dimension (r min) mm - 3
Caliber Diameter Outer Ring (D2) mm - 184.58
Shoulder Diameter Inner Ring (d1) mm - 138.1

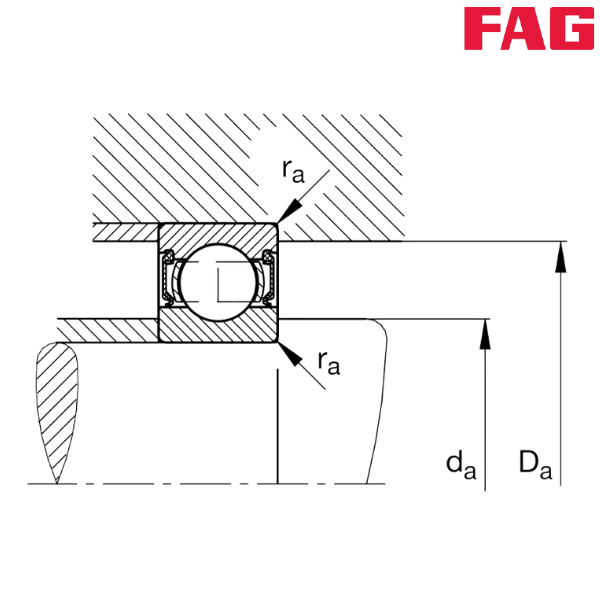

Minimum Diameter Shaft Shoulder (da) mm - 114
Maximum Diameter of Housing Shoulder (Da) mm - 201
Maximum Fillet Radius (ra) mm - 2.5
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
2RSR - Contact Seal on Both Sides (Lip Seal)

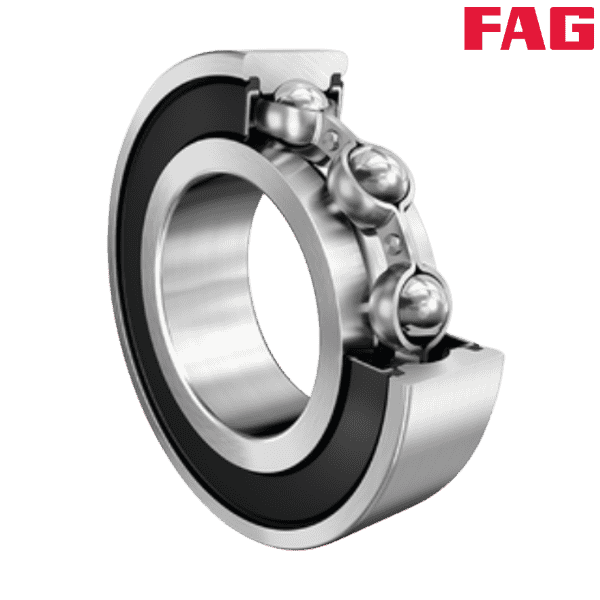

** Images are for representation purposes only
