Description
Brand - FAG
Item Number - 6319 FAG
Category - Deep Groove Ball Bearing Single Row

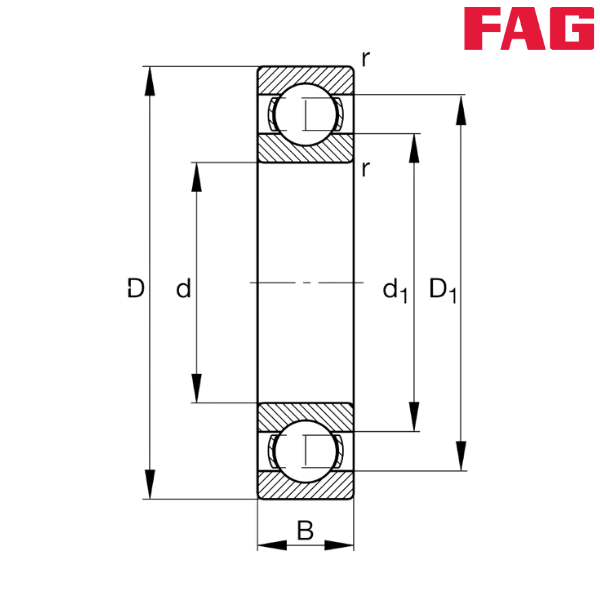

Inner Diameter (d) mm - 95
Outer Diameter (D) mm - 200
Width (B) mm - 45
Basic Dynamic Load Rating (Cr) N - 154000
Basic Static Load Rating (C0r) N - 113000
Fatigue Limit Load (Cur) N - 6600
Limiting Speed (nG) min–1 - 4600
Speed Rating (nϑr) min–1 - 4950
Calculation Factor (f0) - 13.8
Weight (m) kg - 6.07
Minimum Chamfer Dimension (r min) mm - 3
Shoulder Diameter Outer Ring (D1) mm - 166.88
Shoulder Diameter Inner Ring (d1) mm - 129.08

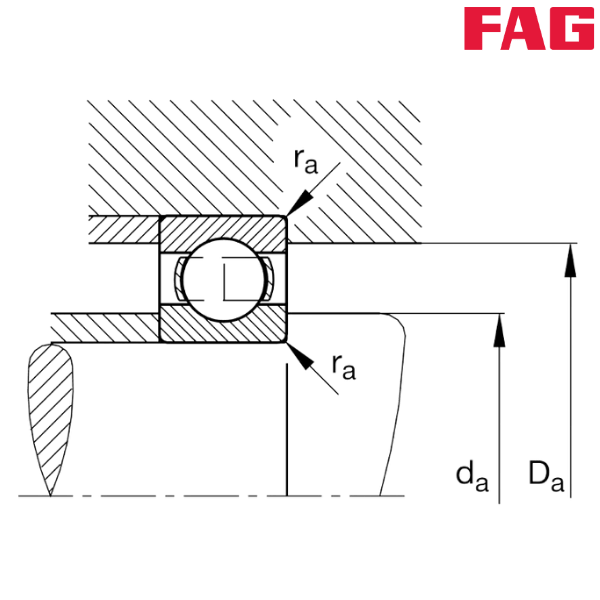

Minimum Diameter Shaft Shoulder (da) mm - 109
Maximum Diameter of Housing Shoulder (Da) mm - 186
Maximum Fillet Radius (ra) mm - 2.5

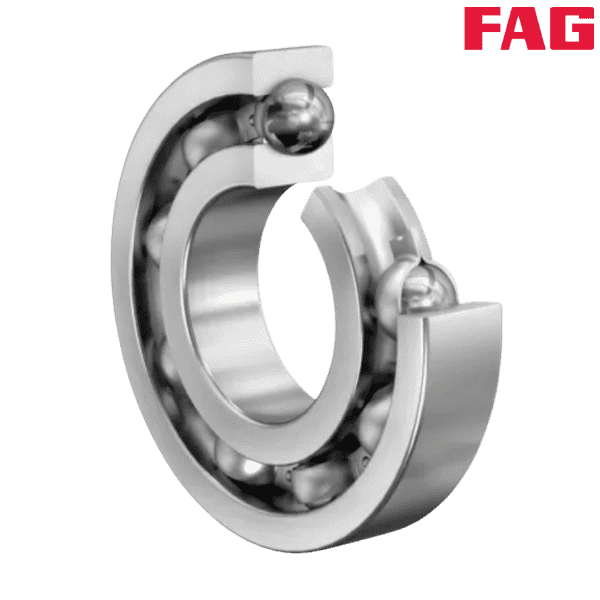

** Images are for representation purposes only
