Description
Brand - McMASTER-CARR
Item Number - 6318K2 McMASTER-CARR

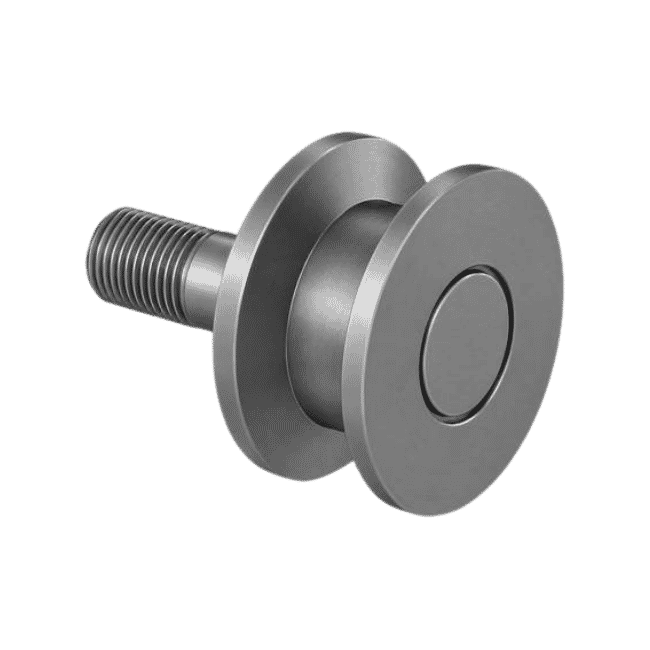

Category - Double-Flanged Track Rollers (Steel Flat Rollers with Seal)
Imperial :

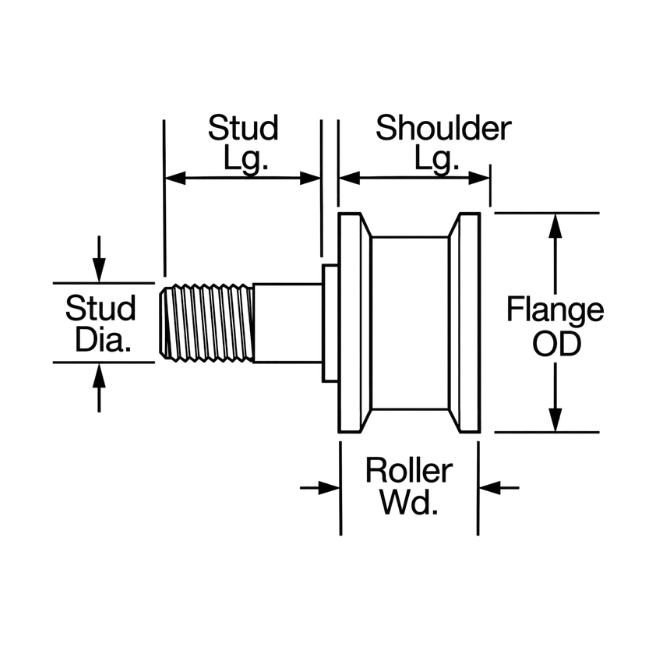

Roller Diameter (inch) - 2
Roller Width (inch) - 1.625
Stud Diameter (inch) - 0.875
Stud Length (inch) - 2
Thread Size (inch) - 7/8-14
Thread Diameter (inch) - 0.875
Number of Threads per inch - 14
Thread Length (inch) - 1.125
Shoulder Diameter (inch) - 1
Shoulder Length (inch) - 0.0625
Outer Diameter of Flange (inch) - 2.6875
Thickness of Flange (inch) - 0.53125
Groove Width (inch) - 0.5625
Groove Depth (inch) - 0.6875
Maximum Speed (rpm) - 6000
Radial Static Load Capacity (lbs) - 1600
Static Thrust Load Capacity (lbs) - 910
Maximum Temperature (°F) - 225°
Inside Bearing Type - Ball Bearing
Metric :
Roller Diameter (mm) - 50.8
Roller Width (mm) - 41.275
Stud Diameter (mm) - 22.225
Stud Length (mm) - 50.8
Thread Length (mm) - 28.575
Shoulder Diameter (mm) - 25.4
Shoulder Length (mm) - 1.5875
Outer Diameter of Flange (mm) - 68.2625
Thickness of Flange (mm) - 13.49375
Groove Width (mm) - 14.2875
Groove Depth (mm) - 17.4625
** Images are for representation purposes only
