Description
Brand - FAG
Item Number - 6318-2Z FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 90
Outer Diameter (D) mm - 190
Width (B) mm - 43
Basic Dynamic Load Rating (Cr) N - 142000
Basic Static Load Rating (C0r) N - 102000
Fatigue Limit Load (Cur) N - 5900
Limiting Speed (nG) min–1 - 4150
Speed Rating (nϑr) min–1 - 5100
Calculation Factor (f0) - 13.9
Weight (m) kg - 5.36
Minimum Chamfer Dimension (r min) mm - 3
Caliber Diameter Outer Ring (D2) mm - 160.74
Shoulder Diameter Inner Ring (d1) mm - 123.3

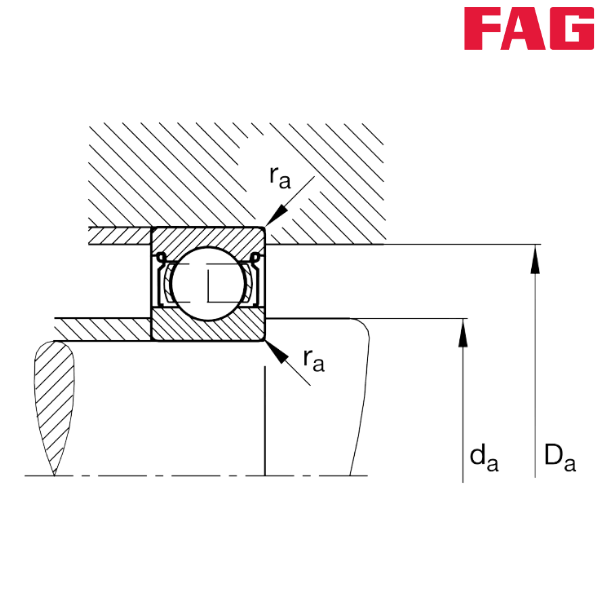

Minimum Diameter Shaft Shoulder (da) mm - 104
Maximum Diameter of Housing Shoulder (Da) mm - 176
Maximum Fillet Radius (ra) mm - 2.5
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
2Z - Non-Contact Sealing Shield on Both Sides (Sheet Metal Gap Seal)
** Images are for representation purposes only
