Description

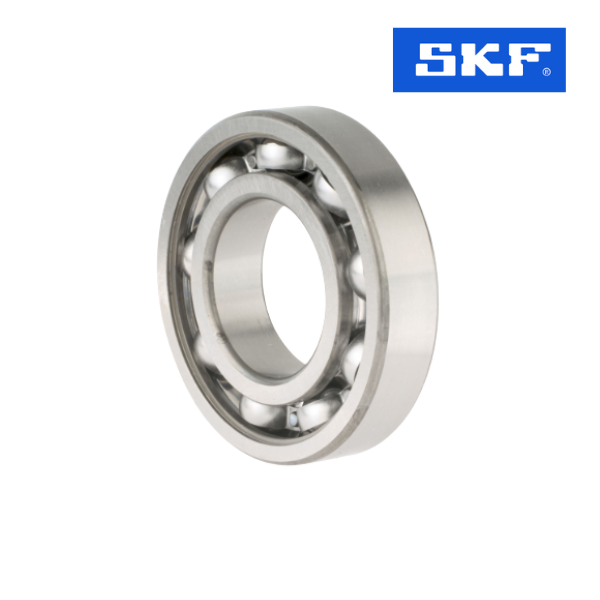

Brand - SKF
Item Number - 6317M/C3VL0241 SKF
Also known as - 6317-M-C3-J20AA 6317-M-J20AA-C3
EAN - 7316571429076
Inner (d) MM - 85
Outer (D) MM - 180
Width (B) MM - 41
Inner (d) Inch - 3.3465
Outer (D) Inch - 7.0866
Width (B) Inch - 1.6142
Weight (kg) - 5.07
Bore - C - Cylindrical Bore
Seal - No Seal
Cage Type - M - Brass Cage
External Modification - No External Modification
Radial Internal Play - C3 Internal Play (Higher than Cn)
Precision - Breakdown Voltage 1000v
Lubrication - Standard Lubrication
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Special Treatment - No Special Treatment
