6317 M/C3VL0241 SKF

SKF

Download Data Sheet

Country Of Origin: SWEDEN

Variant

Share this product

Brand - SKF
Item Number - 6317 M/C3VL0241 SKF

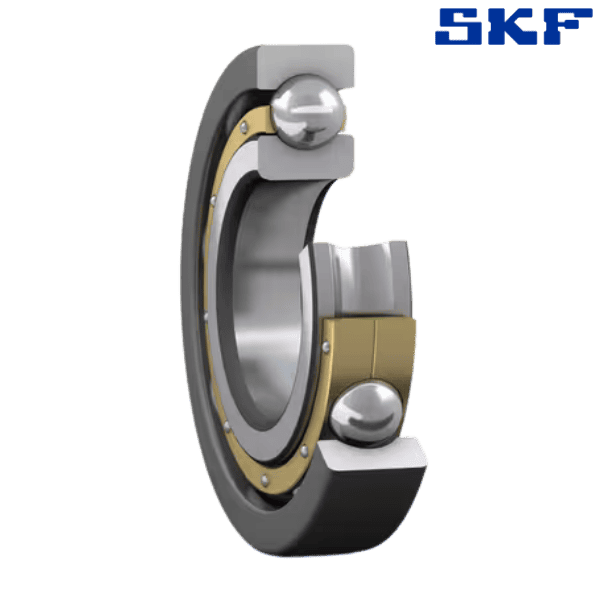

Category - Traction Motor, INSOCOAT Deep Groove Ball Bearings

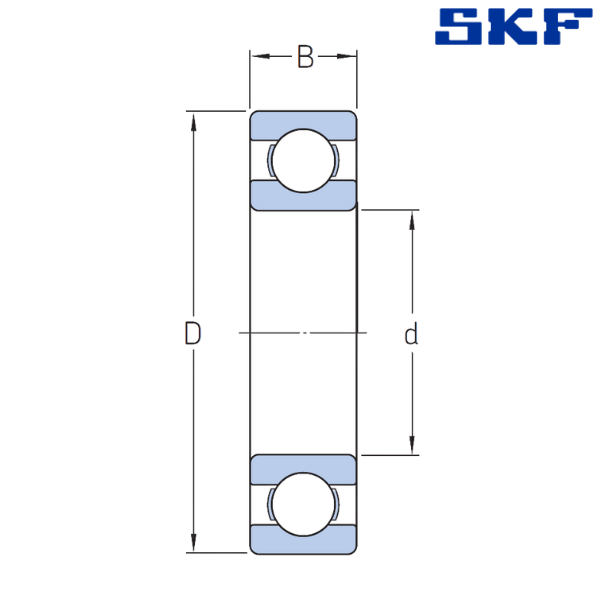

Bore Diameter (d) mm - 85
Outer Diameter (D) mm - 180
Width (B) mm - 41
Dynamic Load Rating (C) kN - 140
Static Load Rating (C0) kN - 96.5
Limiting Speed (r/min) - 5000
Weight (Kg) - 4.79

Designation Prefixes and Suffixes:

M - Machined Brass Cage, Rolling Element Centred
C3 - Bearing Internal Clearance Greater Than Normal (CN)
VL - This Suffix is Followed By Three or Four Digit Numbers Refer to Special Executions.
Example: VL0241 Aluminium Oxide Coated Outside Surface of Outer Ring for Electrical Resistance up to 3000V DC

** Images are for representation purposes only
