Description
Brand - FAG
Item Number - 6317 FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 85
Outer Diameter (D) mm - 180
Width (B) mm - 41
Basic Dynamic Load Rating (Cr) N - 141000
Basic Static Load Rating (C0r) N - 97000
Fatigue Limit Load (Cur) N - 6000
Limiting Speed (nG) min–1 - 5000
Speed Rating (nϑr) min–1 - 5300
Calculation Factor (f0) - 13.3
Weight (m) kg - 4.34
Minimum Chamfer Dimension (r min) mm - 3
Shoulder Diameter Outer Ring (D1) mm - 151.58
Shoulder Diameter Inner Ring (d1) mm - 114.36

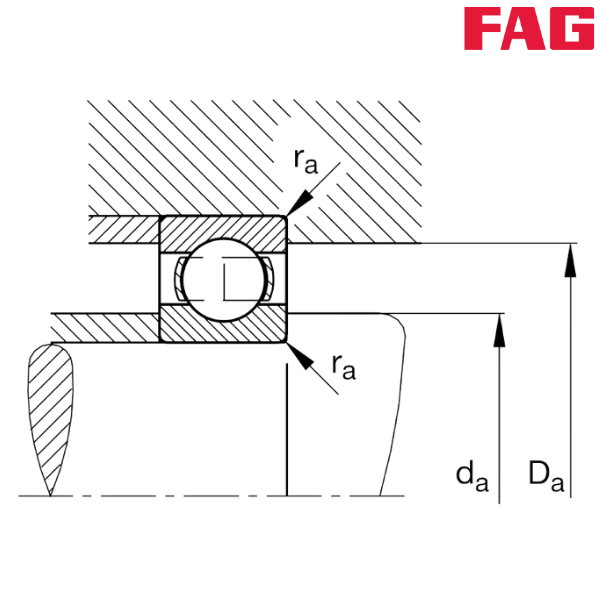

Minimum Diameter Shaft Shoulder (da) mm - 99
Maximum Diameter of Housing Shoulder (Da) mm - 166
Maximum Fillet Radius (ra) mm - 2.5
** Images are for representation purposes only
