Description
Brand - BECO

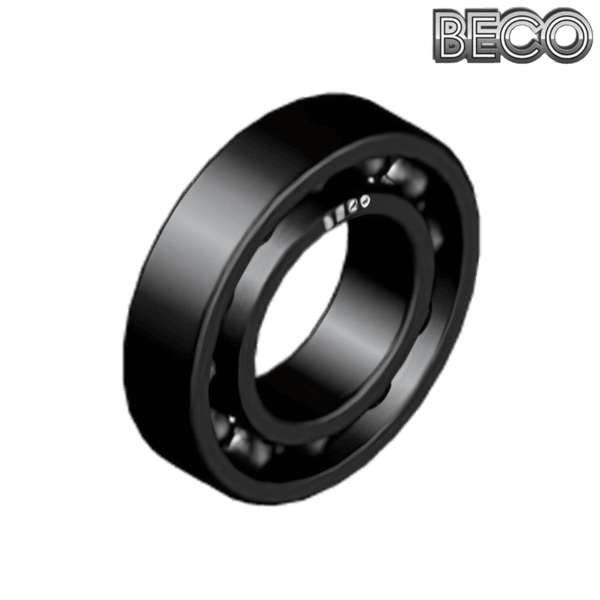

Item Number - 6317 BHTS 330° BECO
Category - Ball Bearings for Extreme Temperature (Only for Automatic Lubrication)

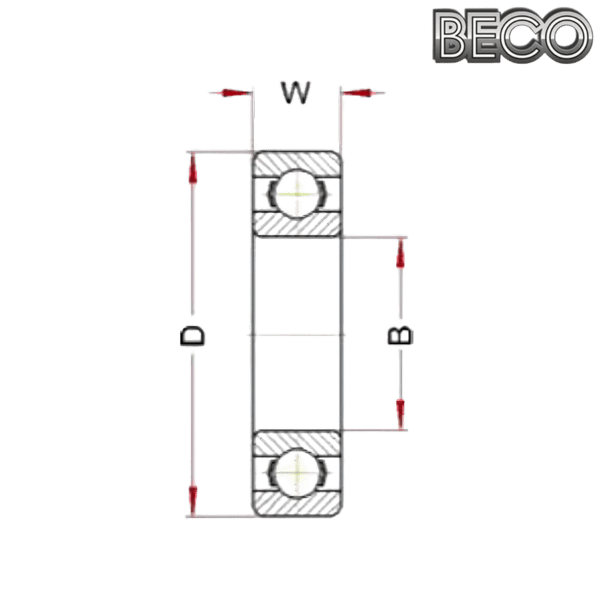

Bore Diameter (B) mm - 85
Outer Diameter (D) mm - 180
Width (W) mm - 41
Weight (kg) - 4.25
Limiting Speed (RPM) - 50
Static Load at 330°C (kN) - 66.55
Static Load at 20°C (kN) - 96.5

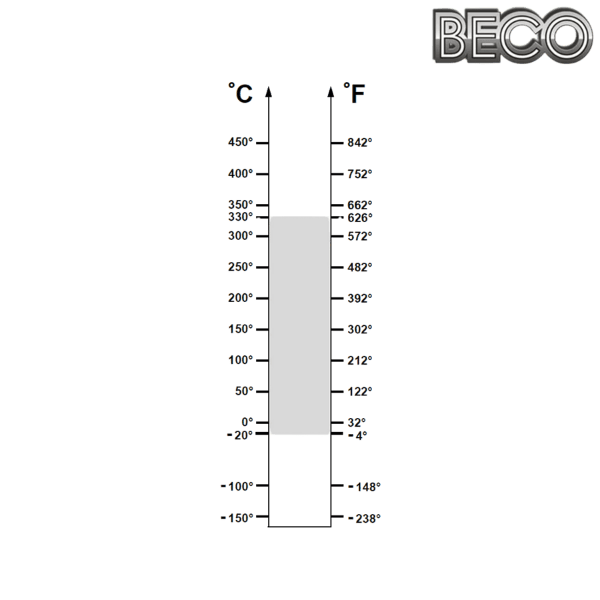

Operating Range - ‒20° / 330°C
Economic Operating Range - 200° / 330°C
NOTE:
- Operating Range is the correct technical range in which can be used the bearing with good operating result.
- Economic Operating Range is the range of temperature in which you can find, according to our study experience and know-how, the better relation price-quality-lifetime.
** Images are for representation purposes only
