Description

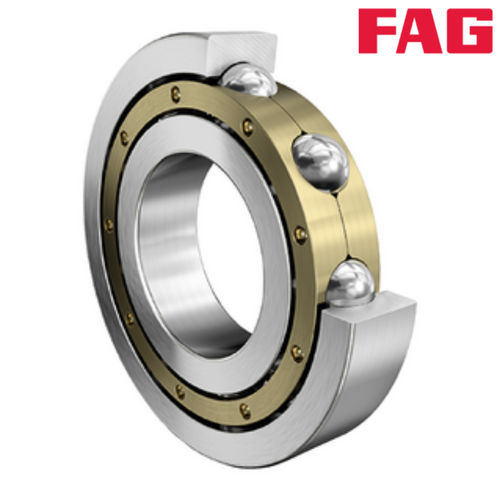

Brand - FAG
Item Number - 6316-M-P6-J20AA-C5 FAG
Also known as - 390155800050
Category - Deep Groove Ball Bearings Single Row
Inner (d) MM - 80
Outer (D) MM - 170
Width (B) MM - 39
Inner (d) Inch - 3.1496
Outer (D) Inch - 6.6929
Width (B) Inch - 1.5354
Weight (kg) - 4.3
Bore - C - Cylindrical Bore
Seal - No Seal
Cage Type - M - Brass Cage
External Modification - No External Modification
Radial Internal Play - C5 Internal Play (Higher than C4)
Precision - P6 + VL0241
Lubrication - Standard Lubrication
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Special Treatment - No Special Treatment
