Description
Brand - FAG
Item Number - 6316 FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 80
Outer Diameter (D) mm - 170
Width (B) mm - 39
Basic Dynamic Load Rating (Cr) N - 131000
Basic Static Load Rating (C0r) N - 87000
Fatigue Limit Load (Cur) N - 5400
Limiting Speed (nG) min–1 - 5400
Speed Rating (nϑr) min–1 - 5500
Calculation Factor (f0) - 13.3
Weight (m) kg - 3.76
Minimum Chamfer Dimension (r min) mm - 2.1
Shoulder Diameter Outer Ring (D1) mm - 141.92
Shoulder Diameter Inner Ring (d1) mm - 108.56

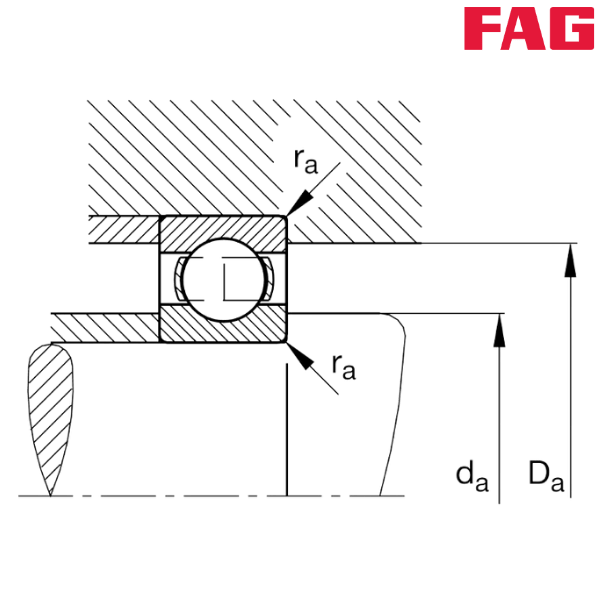

Minimum Diameter Shaft Shoulder (da) mm - 92
Maximum Diameter of Housing Shoulder (Da) mm - 158
Maximum Fillet Radius (ra) mm - 2.1
** Images are for representation purposes only
