Description

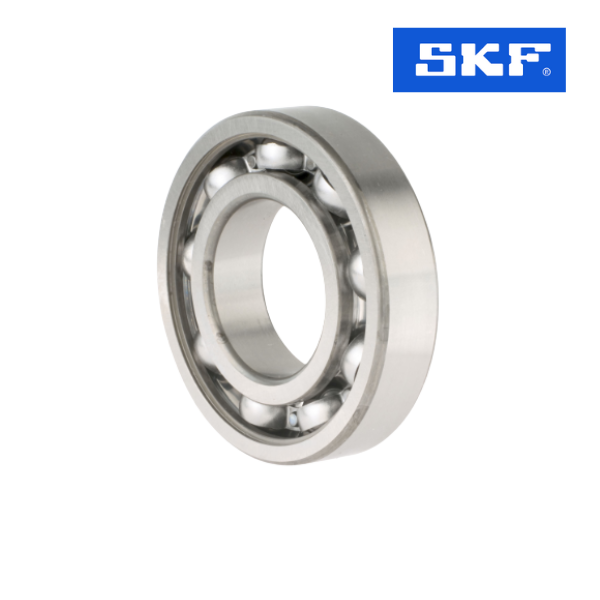

Brand - SKF
Item Number - 6315M4/C3S0VQ335 SKF
Also known as - 6315M4/C3
Category - Deep Groove Ball Bearings Single Row
Inner (d) MM - 75
Outer (D) MM - 160
Width (B) MM - 37
Weight (kg) - 3.77
Bore - C - Cylindrical Bore
Seal - No Seal
Cage Type - M - Brass Cage
External Modification - No External Modification
Radial Internal Play - C3 Internal Play (Higher than Cn)
Precision - VQ - Dimensional And/Or Accuracy
Lubrication - Standard Lubrication
Heat Stabilization - S0 - Temperatures up to 150 °C
Special Treatment - No Special Treatment
