Description
Brand - BECO
Item Number - 6314 BHTS ZZ 280° BECO
Category - Ball Bearings for Extreme Temperature

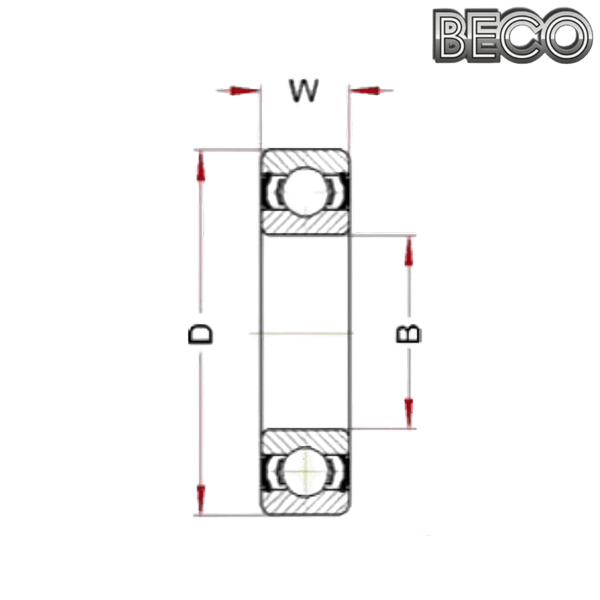

Bore Diameter (B) mm - 70
Outer Diameter (D) mm - 150
Width (W) mm - 35
Weight (kg) - 2.5
Limiting Speed (RPM) - 344
Static Load at 280°C (kN) - 48.57
Static Load at 20°C (kN) - 68

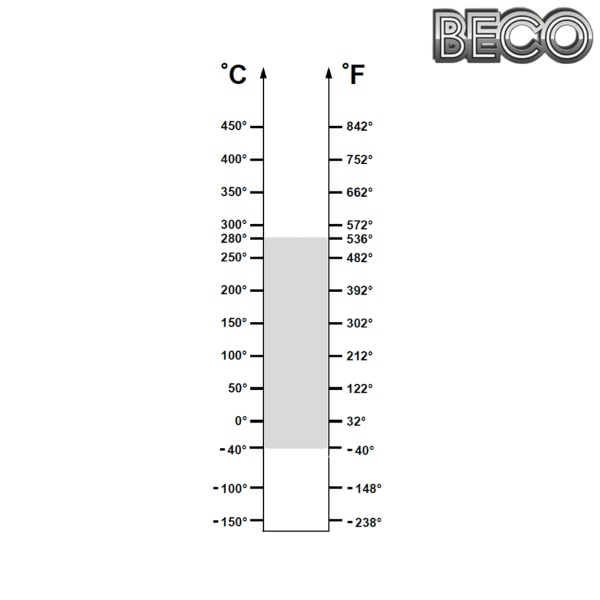

Operating Range - ‒40° / 280°C
Economic Operating Range - 200° / 280°C
NOTE:
- Operating Range is the correct technical range in which can be used the bearing with good operating result.
- Economic Operating Range is the range of temperature in which you can find, according to our study experience and know-how, the better relation price-quality-lifetime.

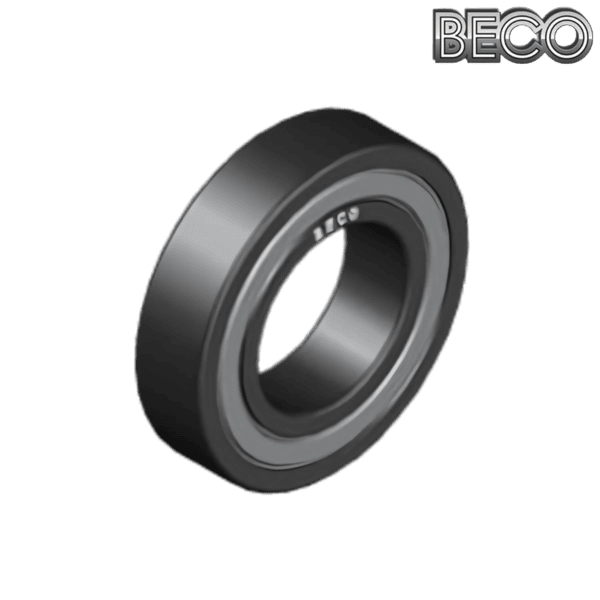

** Images are for representation purposes only
