Description
Brand - FAG
Item Number - 6314-2Z FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 70
Outer Diameter (D) mm - 150
Width (B) mm - 35
Basic Dynamic Load Rating (Cr) N - 115000
Basic Static Load Rating (C0r) N - 69000
Fatigue Limit Load (Cur) N - 4600
Limiting Speed (nG) min–1 - 5700
Speed Rating (nϑr) min–1 - 6100
Calculation Factor (f0) - 13.4
Weight (m) kg - 2.6
Minimum Chamfer Dimension (r min) mm - 2.1
Caliber Diameter Outer Ring (D2) mm - 130.18
Shoulder Diameter Inner Ring (d1) mm - 94.75

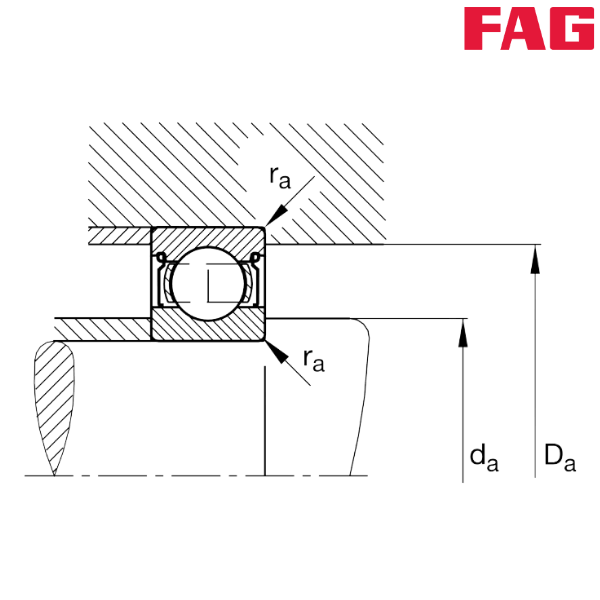

Minimum Diameter Shaft Shoulder (da) mm - 82
Maximum Diameter of Housing Shoulder (Da) mm - 138
Maximum Fillet Radius (ra) mm - 2.1
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
2Z - Non-Contact Sealing Shield on Both Sides (Sheet Metal Gap Seal)
** Images are for representation purposes only
