Description
Brand - FAG
Item Number - 6313-C-2HRS FAG
Category - Deep Groove Ball Bearing Single Row
Inner Diameter (d) mm - 65
Outer Diameter (D) mm - 140
Width (B) mm - 33
Basic Dynamic Load Rating (Cr) N - 101000
Basic Static Load Rating (C0r) N - 60000
Fatigue Limit Load (Cur) N - 4100
Limiting Speed (nG) min–1 - 4500
Calculation Factor (f0) - 13.2
Weight (m) kg - 2.13
Minimum Chamfer Dimension (r min) mm - 2.1
Caliber Diameter Outer Ring (D2) mm - 121.4
Caliber Diameter Inner Ring (d2) mm - 85.59

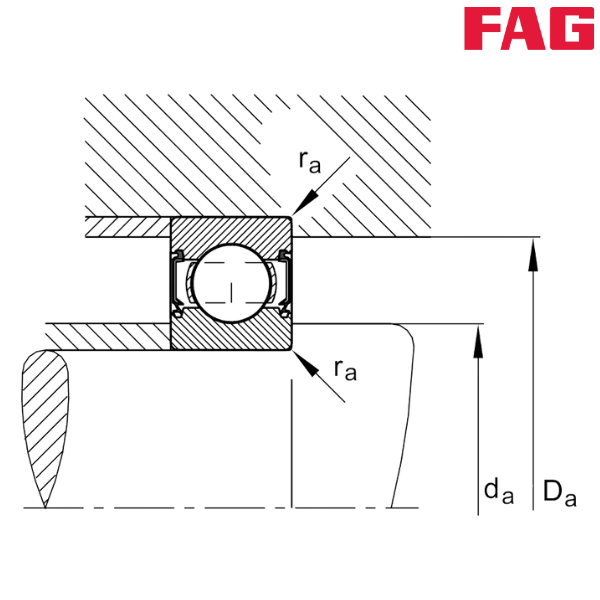

Minimum Diameter Shaft Shoulder (da) mm - 77
Maximum Diameter of Housing Shoulder (Da) mm - 128
Maximum Fillet Radius (ra) mm - 2.1
Descriptions of Prefixes and Suffixes :
-----------------------------------------------------------------------
C - Deep Groove Ball Bearing, Generation C
2HRS - Contact Seal on Both Sides (Lip Seal)
** Images are for representation purposes only
