Description
Brand - SKF
Item Number - 6310 M/C4VL0241 SKF
Category - Traction Motor, INSOCOAT Deep Groove Ball Bearings

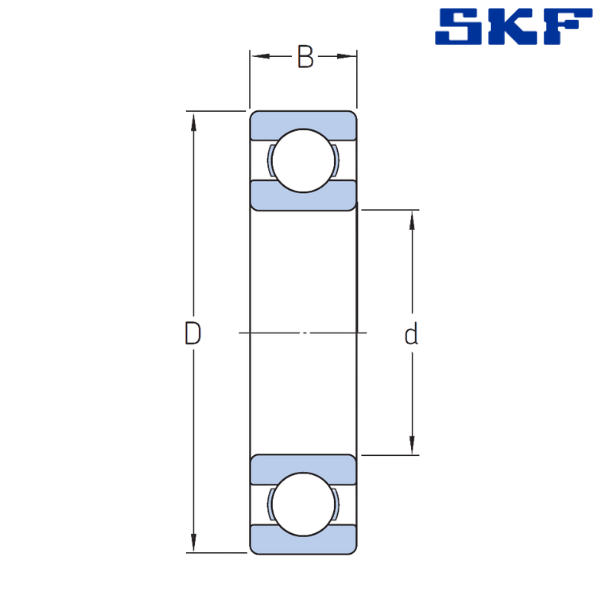

Bore Diameter (d) mm - 50
Outer Diameter (D) mm - 110
Width (B) mm - 27
Dynamic Load Rating (C) kN - 65
Static Load Rating (C0) kN - 38
Limiting Speed (r/min) - 8500
Weight (Kg) - 1.25
Designation Prefixes and Suffixes:
M - Machined Brass Cage, Rolling Element Centred
C4 - Bearing Internal Clearance Greater Than C3
VL - This Suffix is Followed By Three or Four Digit Numbers Refer to Special Executions.
Example: VL0241 Aluminium Oxide Coated Outside Surface of Outer Ring for Electrical Resistance up to 3000V DC
** Images are for representation purposes only
