Description

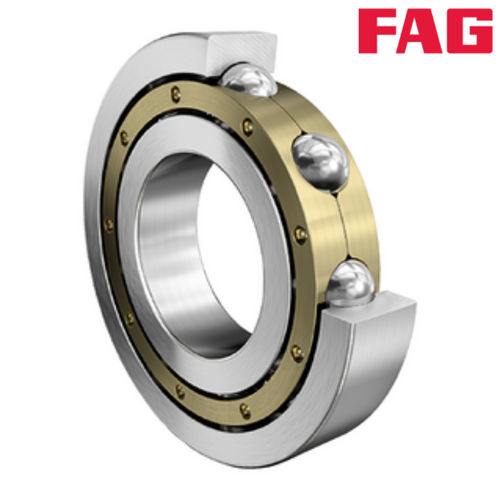

Brand - FAG
Item Number - 6309-N2-MA-C3-F59 FAG
Category - Deep Groove Ball Bearings Single Row
Inner (d) MM - 45
Outer (D) MM - 100
Width (B) MM - 25
Inner (d) Inch - 1.7717
Outer (D) Inch - 3.937
Width (B) Inch - 0.9843
Weight (kg) - 0.823
Bore - C - Cylindrical Bore
Seal - No Seal
Cage Type - MA - Brass Cage, Centered on Outer Ring
External Modification - N2 - 2 Locking Groove in Outer Ring
Radial Internal Play - C3 Internal Play (Higher than Cn)
Precision - A2 - Reduced Width Tolerance
Lubrication - Standard Lubrication
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Special Treatment - No Special Treatment
