Description
Brand - SKF
Item Number - 6309 M/HC5C4S0 SKF
Category - Traction Motor, Hybrid Deep Groove Ball Bearings

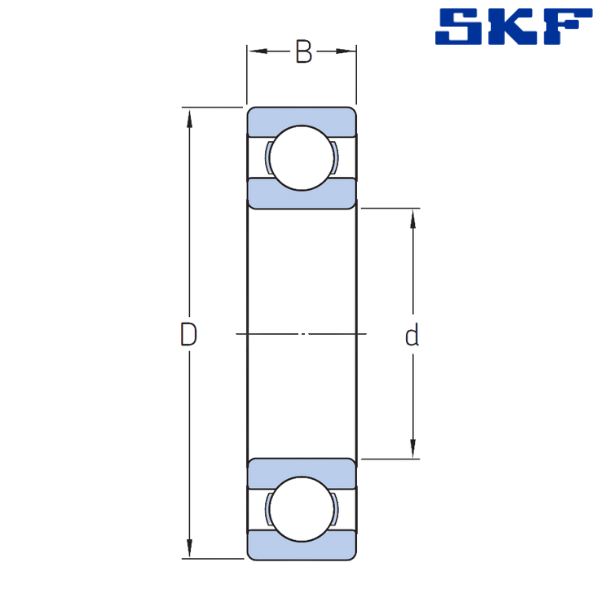

Bore Diameter (d) mm - 45
Outer Diameter (D) mm - 100
Width (B) mm - 25
Dynamic Load Rating (C) kN - 55.3
Static Load Rating (C0) kN - 31.5
Limiting Speed (r/min) - 16000
Weight (Kg) - 0.85
Designation Prefixes and Suffixes:
M - Machined Brass Cage, Rolling Element Centred
C4 - Bearing Internal Clearance Greater Than C3
C5 - Bearing Internal Clearance Greater Than C4
HC5 - Rolling Elements Made of Silicon Nitride
** Images are for representation purposes only
